SKU: MSFT1-RHP

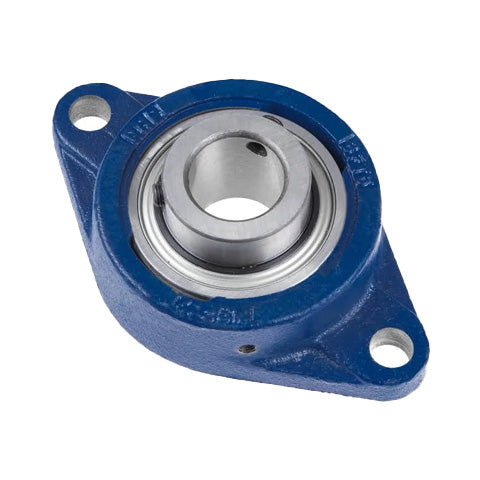

RHP MSFT1 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
RHP MSFT1 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
Regular price
€87,30
ex VAT
Regular price
Sale price
€87,30
ex VAT
In stock
Price Break
10+
€77,70
19+
€73,33
29+
€72,46
39+
€71,59
49+
€70,71
74+
€69,84
99+
€65,48
199+
€64,60
249+
€63,73
499+
€62,86
999+
€61,11
Couldn't load pickup availability
Description
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- MSFT
- Bolt Hole Centres:
- 116.51mm = 4.587 inch
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 3.252 inch |
| H | 5.563 inch |
| J | 4.587 inch |
| G | 0.4375 inch |
| A | 1.173 inch |
| A1 | 1.662 inch |
| A4 | 0.5 inch |
| B | 1.5 inch |
| s | 0.627 |
| d1 | 1.575 inch |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
