SKU: MST1.3/16-RHP

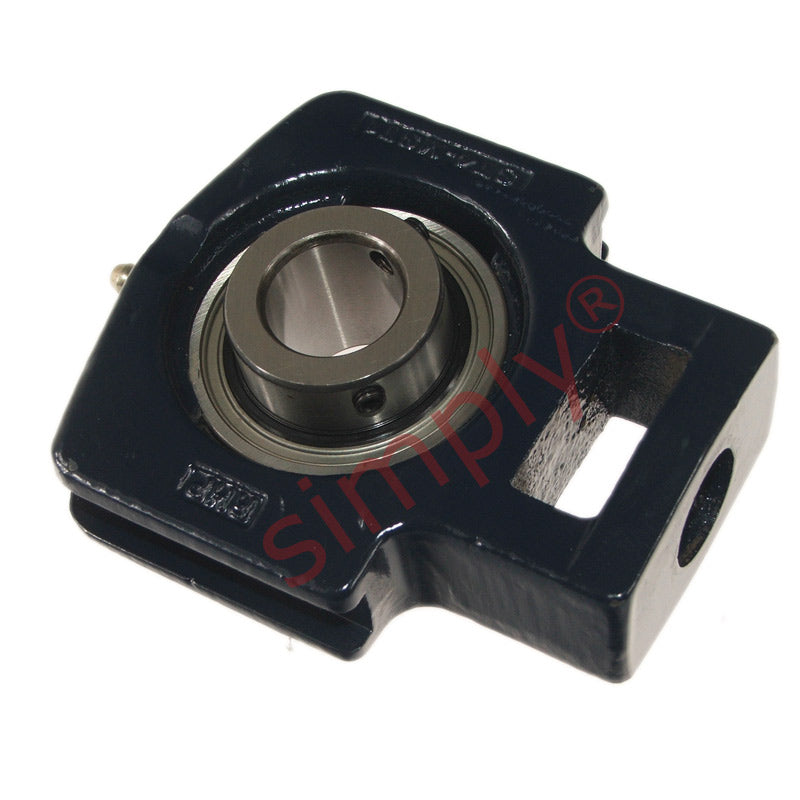

RHP MST1-3/16 Cast Iron Take Up Unit and 1-3/16 inch Bore Insert
RHP MST1-3/16 Cast Iron Take Up Unit and 1-3/16 inch Bore Insert
Regular price
€114,42
ex VAT
Regular price
Sale price
€114,42
ex VAT
In stock
Price Break
10+
€87,14
20+
€82,25
30+
€81,27
40+
€80,29
50+
€79,31
75+
€78,33
100+
€73,44
200+
€72,46
250+
€71,48
500+
€70,50
1000+
€68,54
Share this product
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- MST
Technical
Technical
| Bore | 1-3/16 inch |
|---|---|
| L | 4.882 inch |
| L1 | 2.972 inch |
| L2 | 0.492 inch |
| L3 | 0.65 inch |
| L4 | 2.539 inch |
| L5 | 1.693 inch |
| H | 3.996 inch |
| H1 | 2.539 inch |
| H2 | 1.476 inch |
| H3 | 3.504 inch |
| N | 0.886 inch |
| A | 1.437 inch |
| A1 | 1.181 inch |
| A2 | 0.531 inch |
| B | 1.688 inch |
| B5 | - inch |
| s | 0.69 inch |
| d1 | 1.838 inch |
| d4 | - inch |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-3/16G+insonly">1035-1-3/16G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
