SKU: MST2.1/2-RHP

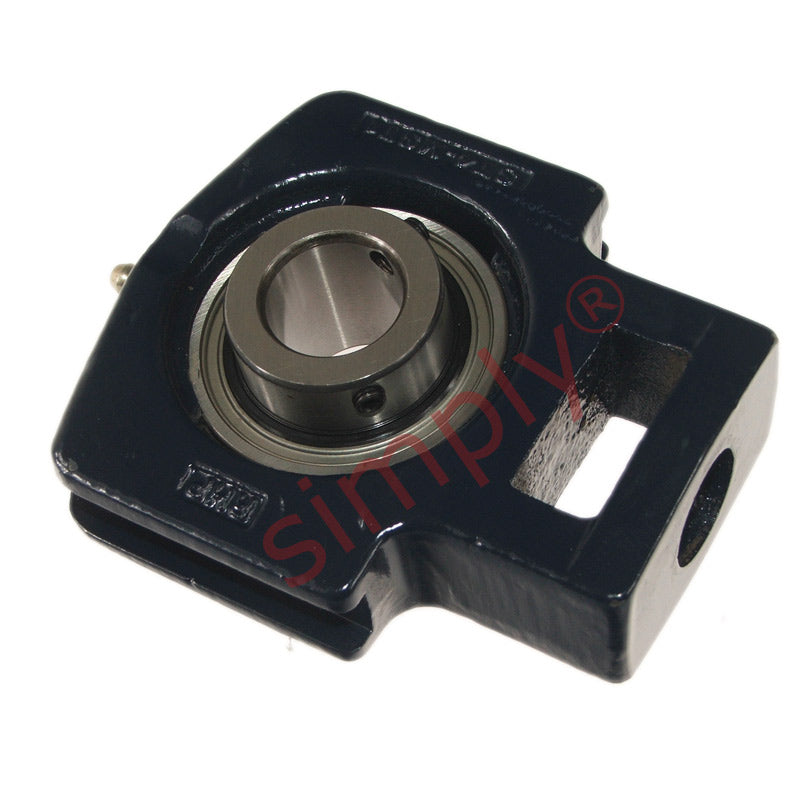

RHP MST2-1/2 Cast Iron Take Up Unit and 2-1/2 inch Bore Insert
RHP MST2-1/2 Cast Iron Take Up Unit and 2-1/2 inch Bore Insert
Regular price
€329,66
ex VAT
Regular price
Sale price
€329,66
ex VAT
In stock
Price Break
10+
€251,07
20+
€236,97
30+
€234,15
40+
€231,33
50+
€228,50
75+
€225,68
100+
€211,58
200+
€208,76
250+
€205,94
500+
€203,11
1000+
€197,47
Share this product
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- MST
Technical
Technical
| Bore | 2-1/2 inch |
|---|---|
| L | 8.76 inch |
| L1 | 5.413 inch |
| L2 | 0.846 inch |
| L3 | 1.26 inch |
| L4 | 4.744 inch |
| L5 | 3.031 inch |
| H | 6.555 inch |
| H1 | 4.449 inch |
| H2 | 2.756 inch |
| H3 | 5.937 inch |
| N | 1.654 inch |
| A | 2.756 inch |
| A1 | 1.988 inch |
| A2 | 1.063 inch |
| B | 2.938 inch |
| B5 | - inch |
| s | 1.19 inch |
| d1 | 3.425 inch |
| d4 | - inch |
| Dynamic load | 61000 N |
| Static load | 45000 N |
| Rec max speed | 2450 rpm |
| Weight | 7.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-2-1/2G+insonly">1070-2-1/2G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
