SKU: MST2.1/4-RHP

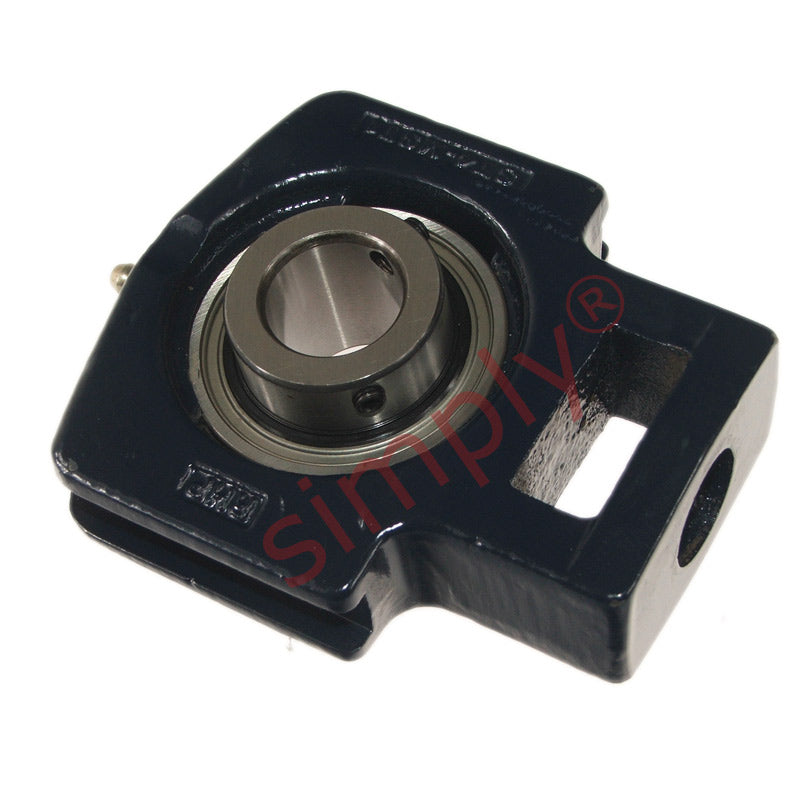

RHP MST2-1/4 Cast Iron Take Up Unit and 2-1/4 inch Bore Insert
RHP MST2-1/4 Cast Iron Take Up Unit and 2-1/4 inch Bore Insert
Regular price
€201,96
ex VAT
Regular price
Sale price
€201,96
ex VAT
In stock
Price Break
10+
€153,81
20+
€145,17
30+
€143,44
40+
€141,71
50+
€139,98
75+
€138,26
100+
€129,62
200+
€127,89
250+
€126,16
500+
€124,43
1000+
€120,97
Share this product
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- MST
Technical
Technical
| Bore | 2-1/4 inch |
|---|---|
| L | 7.559 inch |
| L1 | 4.685 inch |
| L2 | 0.748 inch |
| L3 | 1.26 inch |
| L4 | 3.839 inch |
| L5 | 2.756 inch |
| H | 5.748 inch |
| H1 | 3.976 inch |
| H2 | 2.52 inch |
| H3 | 5.118 inch |
| N | 1.378 inch |
| A | 2.5 inch |
| A1 | 1.831 inch |
| A2 | 1.063 inch |
| B | 2.562 inch |
| B5 | - inch |
| s | 1.002 inch |
| d1 | 2.966 inch |
| d4 | - inch |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 5.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-1/4G+insonly">1060-2-1/4G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
