SKU: MST3.7/16-RHP

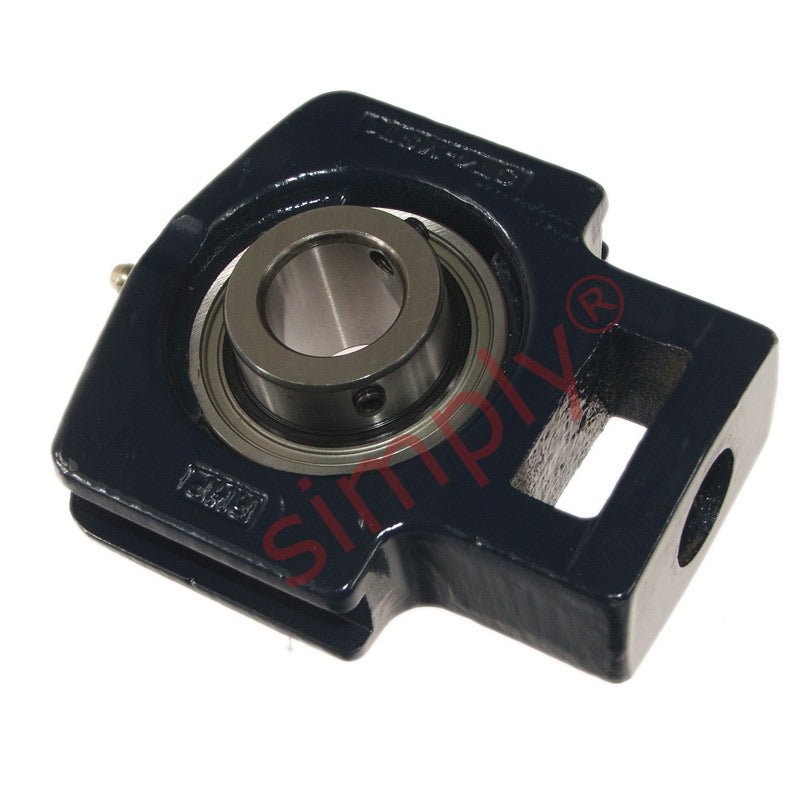

RHP MST3-7/16 Cast Iron Take Up Unit and 3-7/16 inch Bore Insert

RHP MST3-7/16 Cast Iron Take Up Unit and 3-7/16 inch Bore Insert
Regular price €1.082,47 ex VAT
Regular price Sale price €1.082,47 ex VAT
Sale Sold out

In stock

Price Break
10+ €824,40
20+ €778,09
30+ €768,82
40+ €759,56
50+ €750,30
75+ €741,04
100+ €694,72
200+ €685,46
250+ €676,20
500+ €666,93
1000+ €648,41
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 3-7/16 inch
L 10.63 inch
L1 6.496 inch
L2 1.122 inch
L3 1.496 inch
L4 6.004 inch
L5 3.543 inch
H 8.504 inch
H1 5 inch
H2 2.874 inch
H3 7.5 inch
N 1.87 inch
A 3.13 inch
A1 2.697 inch
A2 1.813 inch
B 3.781 inch
B5 - inch
s 1.564 inch
d1 4.396 inch
d4 - inch
Dynamic load 96000 N
Static load 71500 N
Rec max speed 1900 rpm
Weight 16.8 kg
Insert <a href="advanced_search_result.php?keywords=1090-3-7/16G+insonly">1090-3-7/16G Click Here</a>
Casting group 12
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
