SKU: MUCNFL206-20-SNR

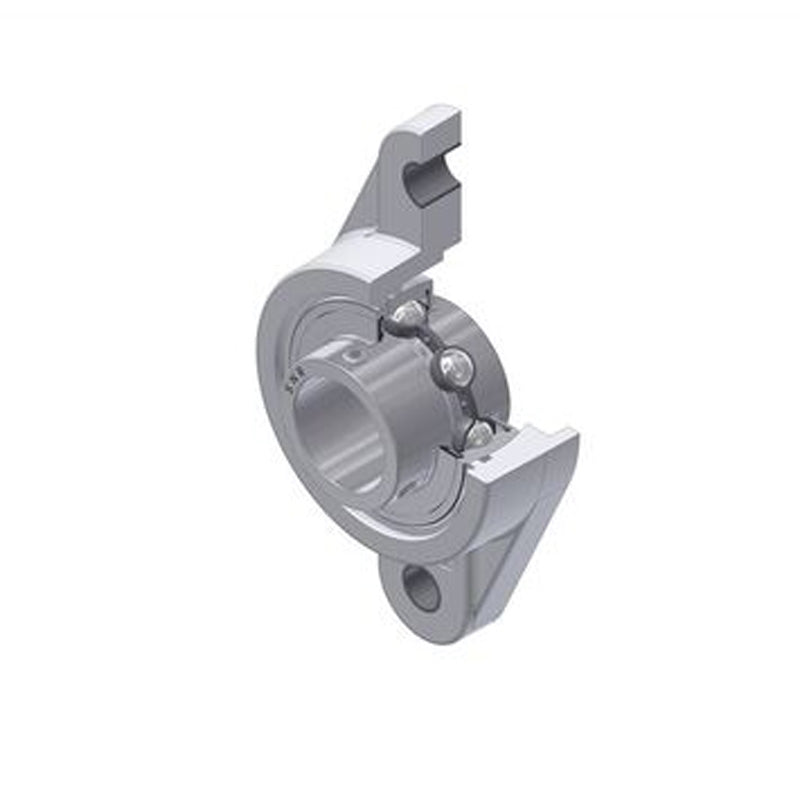

SNR MUCNFL206-20 Imperial Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 1-1/4 inch Bore Insert - Allow 2-3 Days

SNR MUCNFL206-20 Imperial Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 1-1/4 inch Bore Insert - Allow 2-3 Days
Regular price €90,60 ex VAT
Regular price Sale price €90,60 ex VAT
Sale Sold out

In stock

Price Break
3+ €76,75
4+ €73,65
9+ €72,10
19+ €69,78
49+ €68,23
99+ €64,35
499+ €54,27
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/4 inch
A - Housing height 30.5mm
A1 - Housing foot height / flange height 13.3mm
A2 - Total height from mounting surface 41.2mm
B - Width of Inner Ring 38.1mm
d - Shaft diameter 31.75mm
e - Distance mounting surface to bearing centre 19mm
G - Grease fitting 1/4-28 inch
H - Housing length, width or diameter 148mm
J - Mounting holes distance 117mm
L - Housing width / diameter 80mm
N - Mounting hole dimension 11mm
S - Distance front side/bearing centre 15.9mm
C - Dynamic load rating 16.7 kN
C0 - Static load rating 9 kN
Operating temperature min. -20 Deg C
Operating temperature max. 100 Deg C
Mass 0.448kg
Recommended tightening torque for set screw 3.9 Nm
