SKU: N1300-068SS

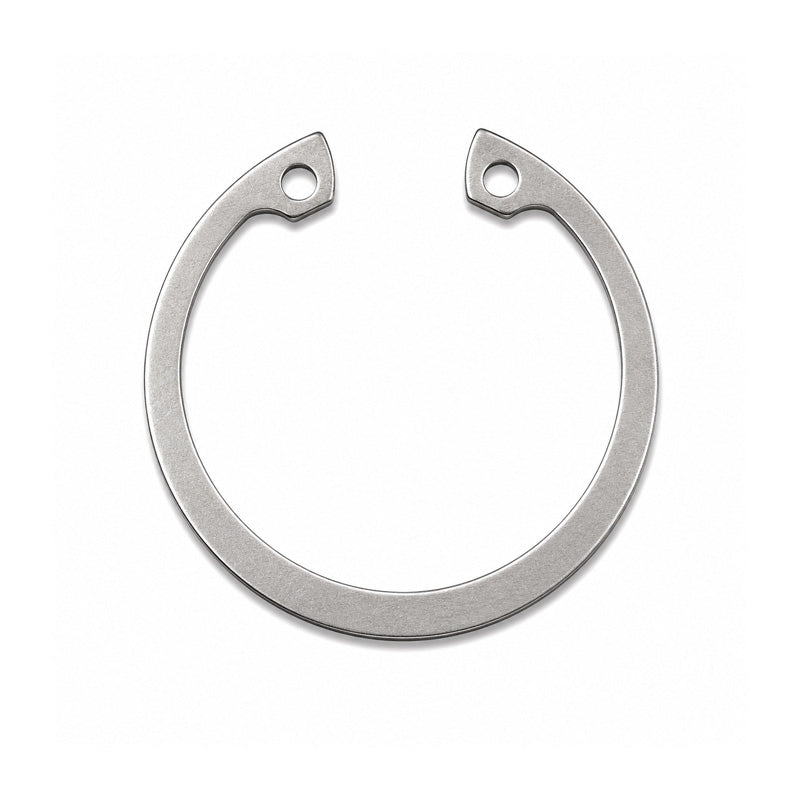

Stainless Steel Internal Circlip for 0.68 inch Bore Diameter Un-Sprung Diameter 0.763 inch
Stainless Steel Internal Circlip for 0.68 inch Bore Diameter Un-Sprung Diameter 0.763 inch
Regular price
€3,34
ex VAT
Regular price
Sale price
€3,34
ex VAT
Equivalent to: N1300-068SS
In stock
Price Break
5+
€2,00
10+
€1,72
20+
€1,57
50+
€1,43
100+
€1,14
500+
€1,00
1000+
€0,86
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
Equivalent: N1300-068SS
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 17.46mm = 0.688 (11/16) inch
- Outside Diameter:
- 19.38mm = 0.763 inch
- Material:
- Stainless Steel
- Thickness:
- 0.89mm = 0.035 inch
- Groove Diameter:
- 18.59mm = 0.732 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 0.688 inch |
| Ring Thickness (t) | 0.035 inch |
| Thickness tolerance (t) | 0.035 inch |
| Unstressed diameter (D) | 0.763 inch |
| Unstressed diameter tolerance (D) | +0.010 / -0.005 inch |
| Lug (L) | 0.137 inch |
| Beam (b) | 0.063 inch |
| h | 0.06 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 0.732 inch |
| Groove tolerance (G) | 0.002 inch |
| Minimum Groove Width (W) | 0.039 inch |
| Groove Width Tolerance (W) | +0.003 / -0.000 inch |
| Groove depth (d) | 0.02 inch |
