SKU: N1400-112

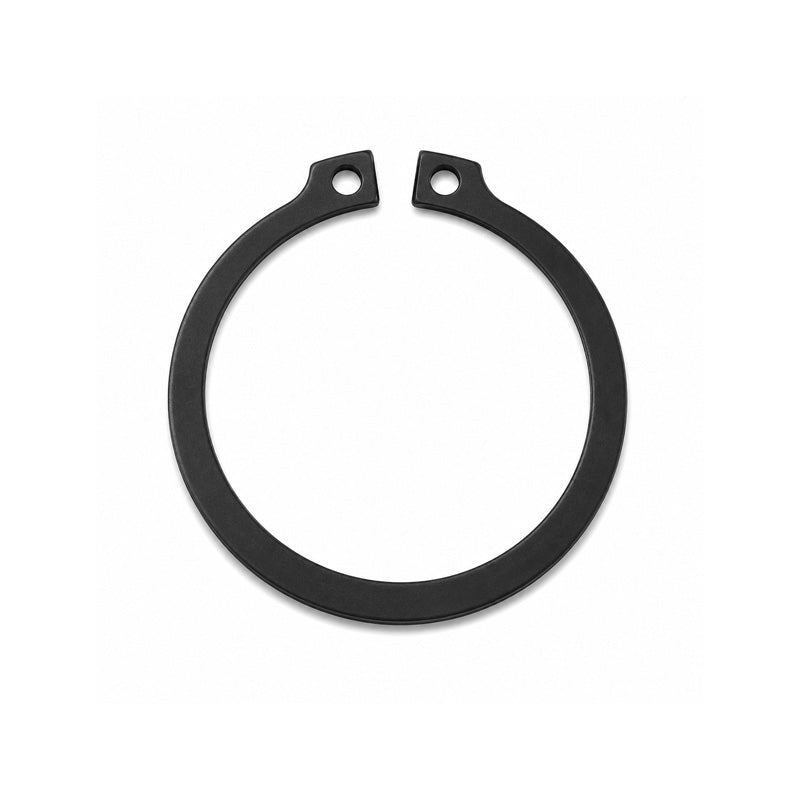

External Circlip for 1.12 inch Shaft Diameter Un-Sprung Diameter 1.041 inch
External Circlip for 1.12 inch Shaft Diameter Un-Sprung Diameter 1.041 inch
Regular price
€0,99
ex VAT
Regular price
Sale price
€0,99
ex VAT
Equivalent to: N1400-112
In stock
Price Break
10+
€0,43
20+
€0,29
50+
€0,18
100+
€0,15
500+
€0,09
1000+
€0,08
Description
Description
|
Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable. |
Equivalent: N1400-112
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 26.44mm = 1.041 inch
- Material:
- Sprung Carbon Steel
- Shaft Size:
- 28.58mm = 1.125 (1-1/8) inch
- Thickness:
- 1.27mm = 0.05 inch
- Groove Diameter:
- 26.9mm = 1.059 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 1.125 inch |
| Ring Thickness (t) | 0.05 inch |
| Thickness tolerance (t) | 0.002 inch |
| Unstressed diameter (D) | 1.041 inch |
| Unstressed diameter tolerance (D) | +0.010 / -0.015 inch |
| Lug (L) | 0.186 inch |
| Beam (b) | 0.128 inch |
| h | 0.076 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 1.059 inch |
| Groove tolerance (G) | 0.004 inch |
| Minimum Groove Width (W) | 0.056 inch |
| Groove Width Tolerance (W) | +0.004 / -0.000 inch |
| Groove depth (d) | 0.033 inch |
