SKU: N1400-137SS

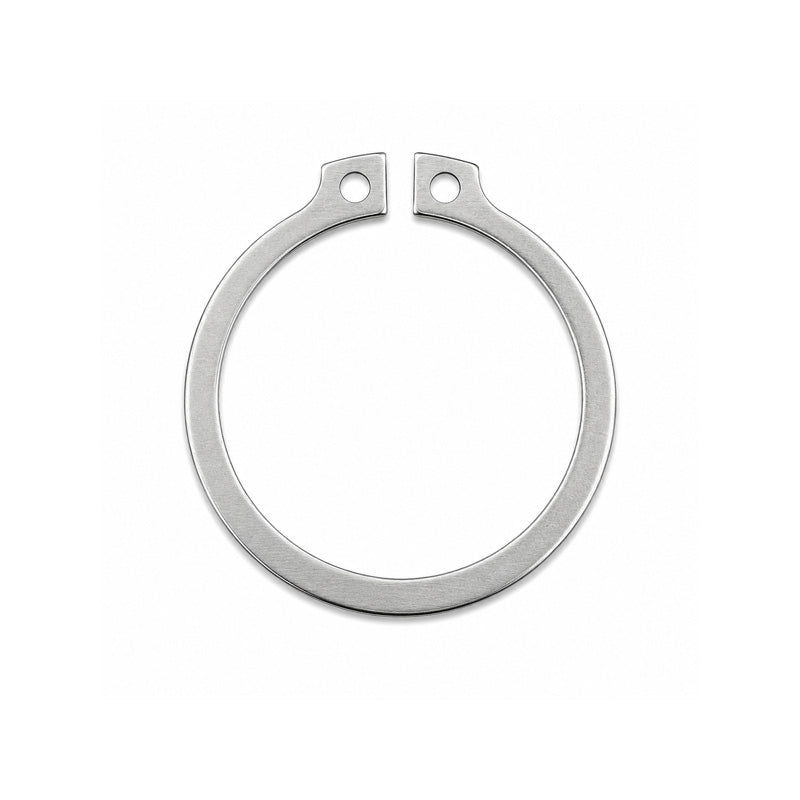

Stainless Steel External Circlip for 1.37 inch Shaft Diameter Un-Sprung Diameter 1.272 inch
Stainless Steel External Circlip for 1.37 inch Shaft Diameter Un-Sprung Diameter 1.272 inch
Regular price
€5,60
ex VAT
Regular price
Sale price
€5,60
ex VAT
Equivalent to: N1400-137SS
In stock
Price Break
5+
€4,74
10+
€4,55
20+
€4,45
50+
€4,31
100+
€4,22
500+
€3,98
1000+
€3,35
Description
Description
|
Stainless Steel Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Stainless Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable, corrosion resistant. |
Equivalent: N1400-137SS
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 32.31mm = 1.272 inch
- Material:
- Stainless Steel
- Shaft Size:
- 34.93mm = 1.375 (1-3/8) inch
- Thickness:
- 1.27mm = 0.05 inch
- Groove Diameter:
- 32.79mm = 1.291 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 1.375 inch |
| Ring Thickness (t) | 0.05 inch |
| Thickness tolerance (t) | 0.002 inch |
| Unstressed diameter (D) | 1.272 inch |
| Unstressed diameter tolerance (D) | +0.010 / -0.015 inch |
| Lug (L) | 0.188 inch |
| Beam (b) | 0.152 inch |
| h | 0.082 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 1.291 inch |
| Groove tolerance (G) | 0.004 inch |
| Minimum Groove Width (W) | 0.056 inch |
| Groove Width Tolerance (W) | +0.004 / -0.000 inch |
| Groove depth (d) | 0.042 inch |
