SKU: N217ECP/C3-SKF

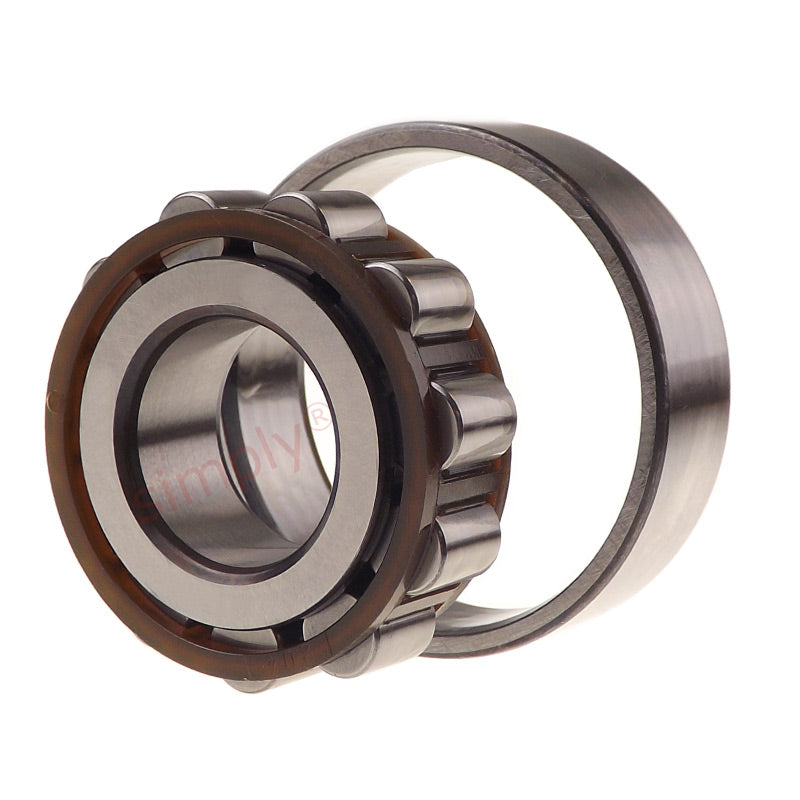

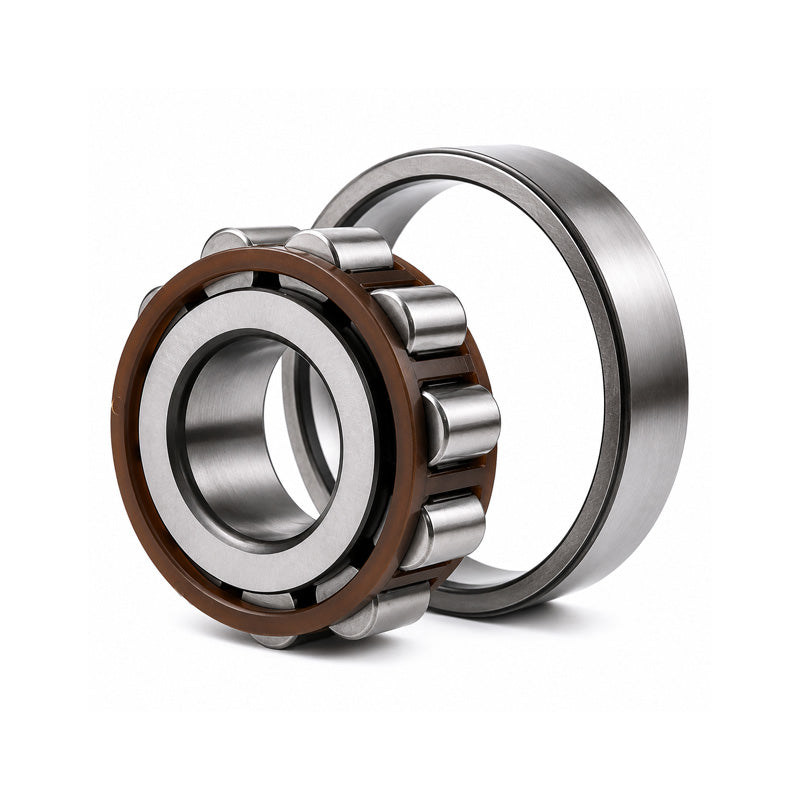

SKF N217ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 85x150x28mm

Name: SKF N217ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 85x150x28mm
Brand: SKF
SKU: N217ECP/C3-SKF
Price: 377.81 EUR
Availability: InStock

€377,81 ex VAT

Sale Sold out

In stock

Price Break

10+ €287,74

19+ €271,58

29+ €268,34

39+ €265,11

49+ €261,88

74+ €258,64

99+ €242,48

199+ €239,25

249+ €236,01

499+ €232,78

999+ €226,31

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: SKF - High Quality
Inside Diameter:: 85mm
Outside Diameter:: 150mm
Width:: 28mm
Seals / Shields:: None
Clearance:: C3

Technical

d	85mm
D	150mm
B	28mm
Dynamic load C	190 kN
Static load Co	200 kN
Fatigue load limit Pu	24.5 kN
Reference speed	4800 rpm
Limiting speed	5300 rpm
Weight	1.9 kg
Alt cage	M
d1	107mm
F,E	136.5mm
r1r2 min	2mm
r3r4 min	2mm
S	1.5mm
da min	96mm
da max	134mm
db	139mm
Da max	139mm
ra max	2mm
rb max	2mm
kr	0.15
