SKU: N318ECP-SKF

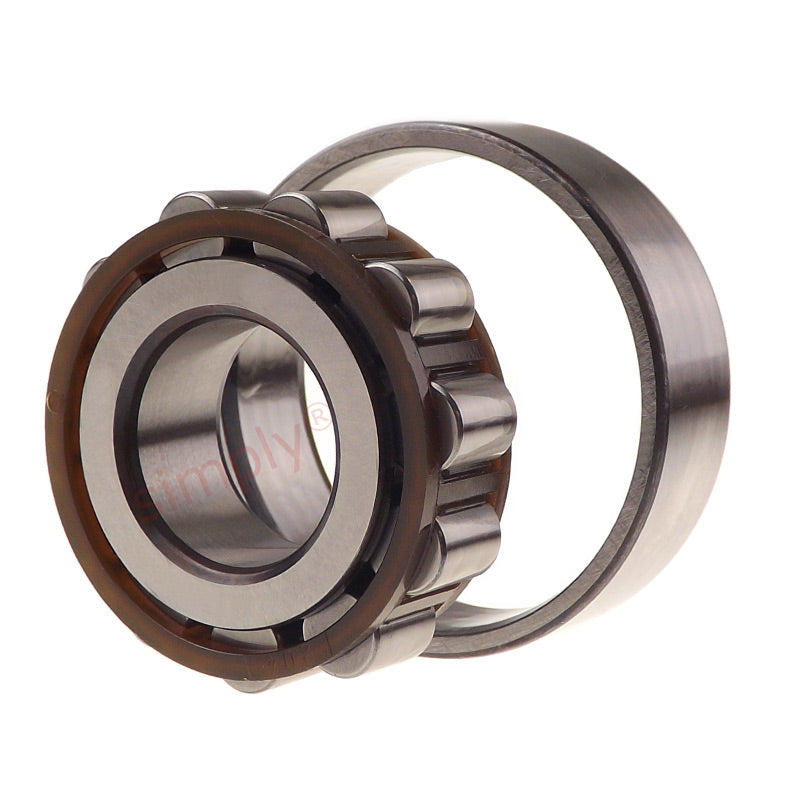

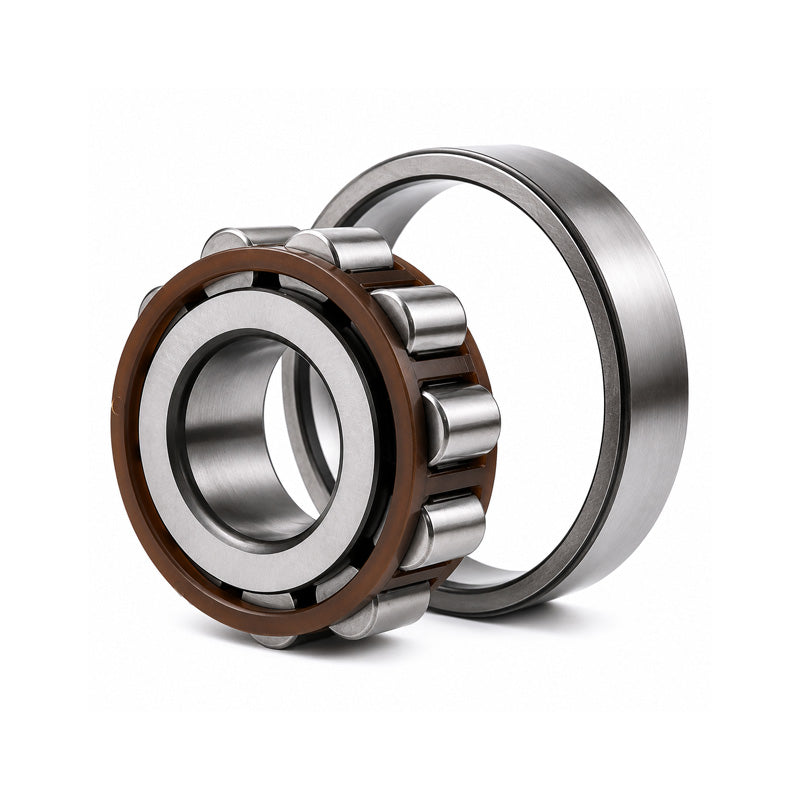

SKF N318ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 90x190x43mm

Name: SKF N318ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 90x190x43mm
Brand: SKF
SKU: N318ECP-SKF
Price: 457.57 EUR
Availability: InStock

€457,57 ex VAT

Sale Sold out

In stock

Price Break

10+ €348,49

19+ €328,91

29+ €325,00

39+ €321,08

49+ €317,16

74+ €313,25

99+ €293,67

199+ €289,75

249+ €285,84

499+ €281,92

999+ €274,09

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: SKF - High Quality
Inside Diameter:: 90mm
Outside Diameter:: 190mm
Width:: 43mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	90mm
D	190mm
B	43mm
Dynamic load C	365 kN
Static load Co	360 kN
Fatigue load limit Pu	43 kN
Reference speed	3800 rpm
Limiting speed	4500 rpm
Weight	5.3 kg
Alt cage	M
d1	124mm
F,E	169.5mm
r1r2 min	3mm
r3r4 min	3mm
S	2.5mm
da min	104mm
da max	166mm
db	173mm
Da max	176mm
ra max	2.5mm
rb max	2.5mm
kr	0.15
