SKU: N326ECMR/C4VA301-SKF

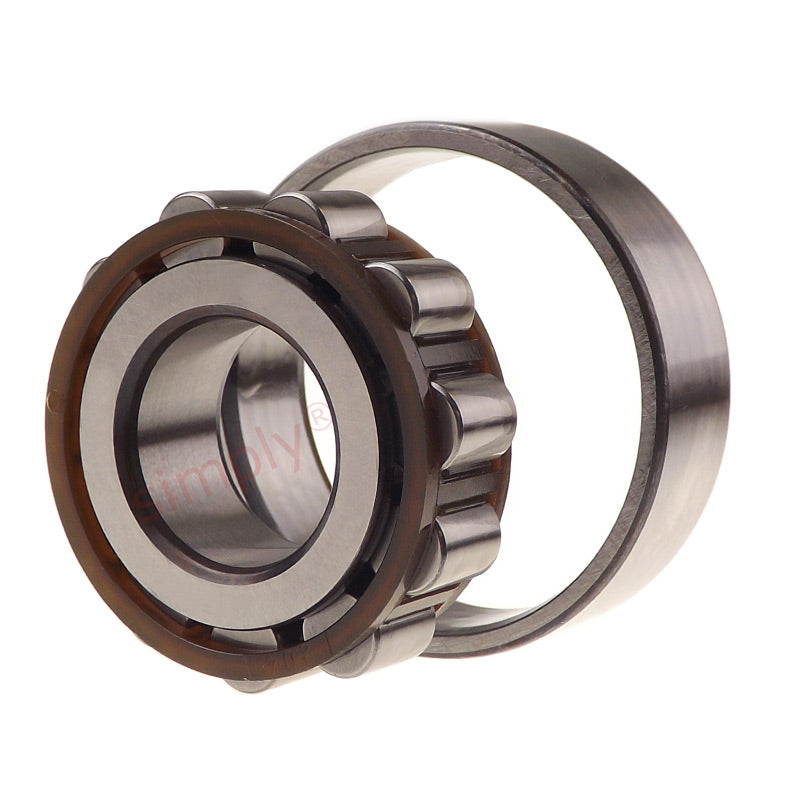

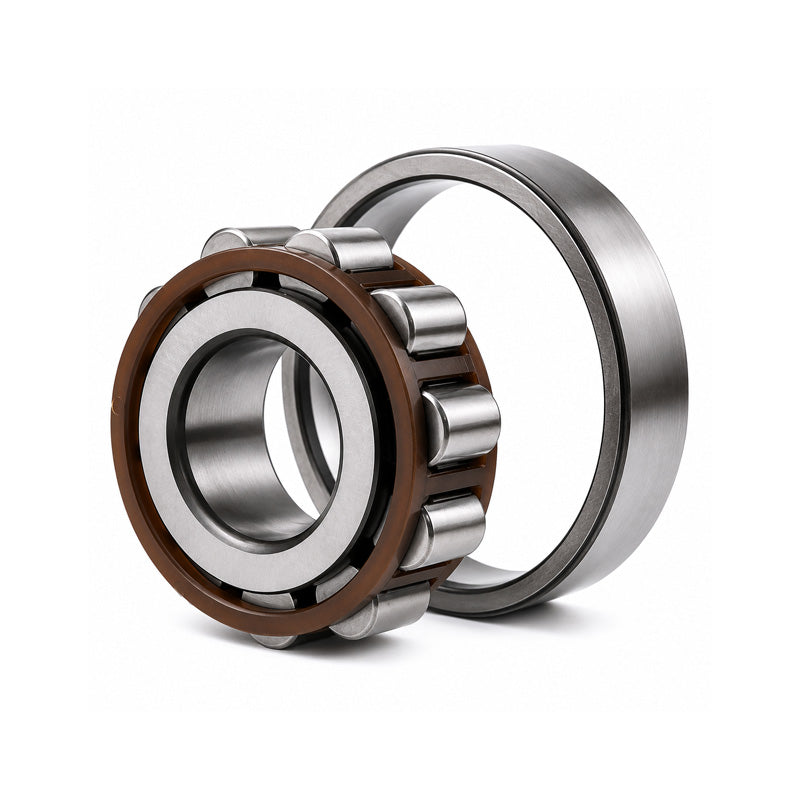

SKF N326ECMRC4VA301 Single Row Cylindrical Roller Bearing with Brass Cage 130x280x58mm

Name: SKF N326ECMRC4VA301 Single Row Cylindrical Roller Bearing with Brass Cage 130x280x58mm
Brand: SKF
SKU: N326ECMR/C4VA301-SKF
Price: 3046.45 EUR
Availability: InStock

€3.046,45 ex VAT

Sale Sold out

In stock

Price Break

10+ €2.320,18

19+ €2.189,83

29+ €2.163,76

39+ €2.137,69

49+ €2.111,62

74+ €2.085,55

99+ €1.955,21

199+ €1.929,14

249+ €1.903,07

499+ €1.877,00

999+ €1.824,86

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: SKF - High Quality
Inside Diameter:: 130mm
Outside Diameter:: 280mm
Width:: 58mm
Seals / Shields:: None
Clearance:: C4

Technical

d	130mm
D	280mm
B	58mm
Dynamic load C	720 kN
Static load Co	750 kN
Fatigue load limit Pu	81.5 kN
Reference speed	2400 rpm
Limiting speed	3000 rpm
Weight	16 kg
Alt cage	M
d1	181mm
F,E	247mm
r1r2 min	4mm
r3r4 min	4mm
S	3.7mm
da min	147mm
da max	243mm
db	251mm
Da max	263mm
ra max	3mm
rb max	3mm
kr	0.15
