SKU: NA22/6.2RS-SKF

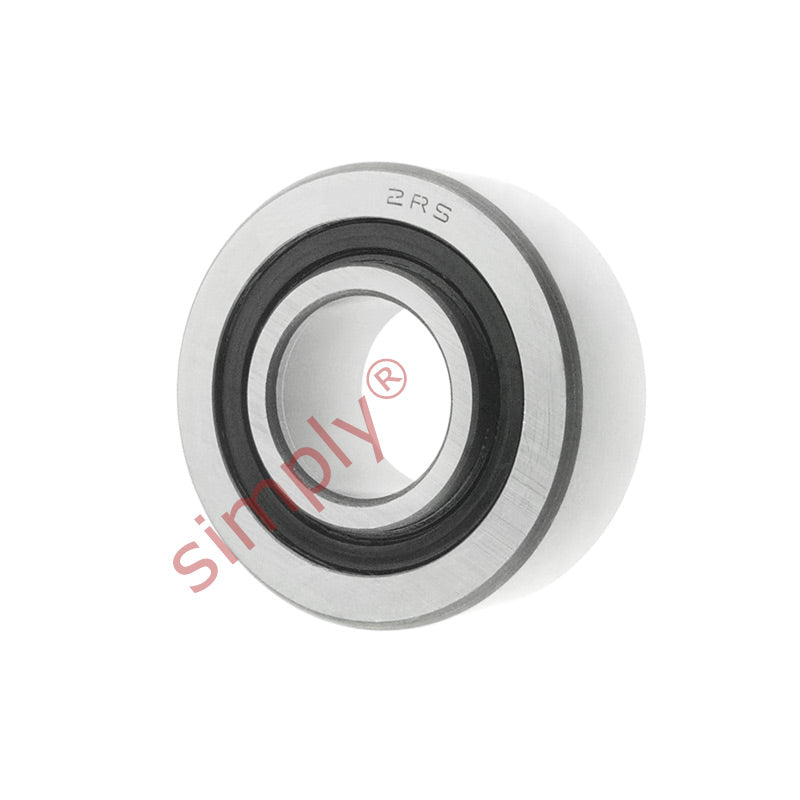

SKF NA22/62RS Support Roller Without Axial Guidance With Inner Sleeve 6x19x11.8mm
SKF NA22/62RS Support Roller Without Axial Guidance With Inner Sleeve 6x19x11.8mm
Out of stock
Description
Description
Support Rollers without Axial Guidance : Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers are supplied with inner rings and are intended for arrangements where the pin or shaft can be hardened and ground. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 19mm
- Width:
- 11.8mm
Technical
Technical
| d | 6mm |
|---|---|
| D | 19mm |
| C | 11.8mm |
| B | 12mm |
| D1 | 16mm |
| F | 10mm |
| r min | 0.3mm |
| r1r2 min | 0.3mm |
| Speed rating | 9000 rpm |
| Dynamic load | 3520 N |
| Basic static load | 3000 N |
| Fatigue load limit Pu | 340 N |
| Max radial dynamic force | 1930 N |
| Max radial static force | 2750 N |
| Weight | 22 g |
