SKU: NA4826-NTN

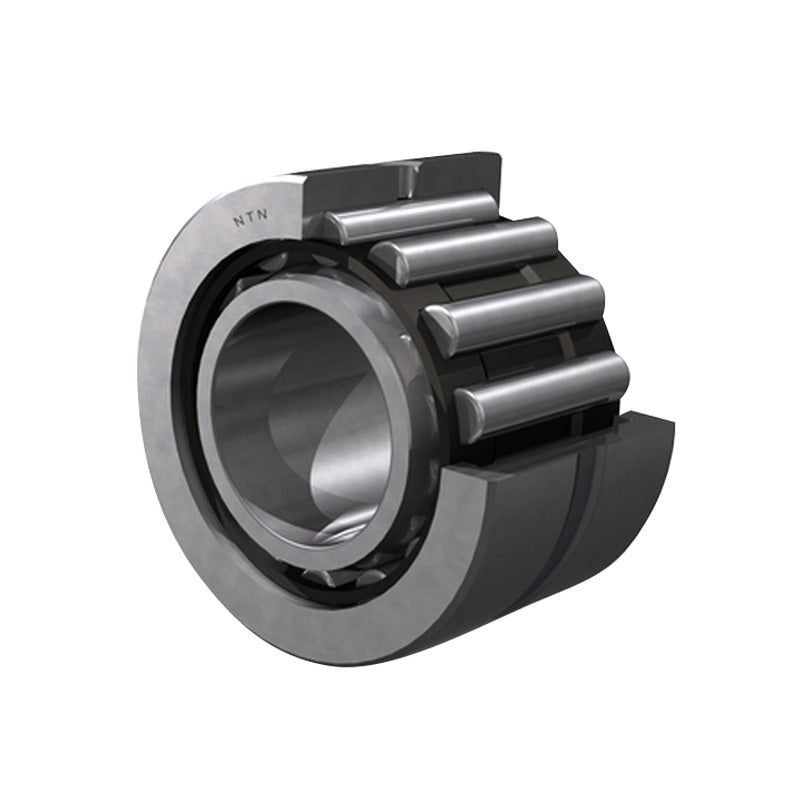

NTN NA4826 Machined Needle Roller Bearing with Shaft Sleeve 130x165x35mm - Allow 2-3 Days

NTN NA4826 Machined Needle Roller Bearing with Shaft Sleeve 130x165x35mm - Allow 2-3 Days
Regular price €258,98 ex VAT
Regular price Sale price €258,98 ex VAT
Sale Sold out

In stock

Price Break
3+ €219,40
4+ €210,54
9+ €206,11
19+ €199,46
49+ €195,03
99+ €183,94
499+ €155,13
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 130mm
D - Outside diameter 165mm
C - Width of bearing, drawn cup or outer ring 35mm
F - Under roller diameter 145mm
rs - Minimum fillet radius 1.1mm
s - Max axial offset 1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 118 kN
C0r - Static load rating 305 kN
N - Grease lubrication limit speed 1900 tr/min
N - Oil lubrication limit speed 2800 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 136.5mm
Da max - Outer ring maximum shoulder diameter 158.5mm
ras max - Maximum shaft & housing fillet radius 1mm
