SKU: NA4852-NTN

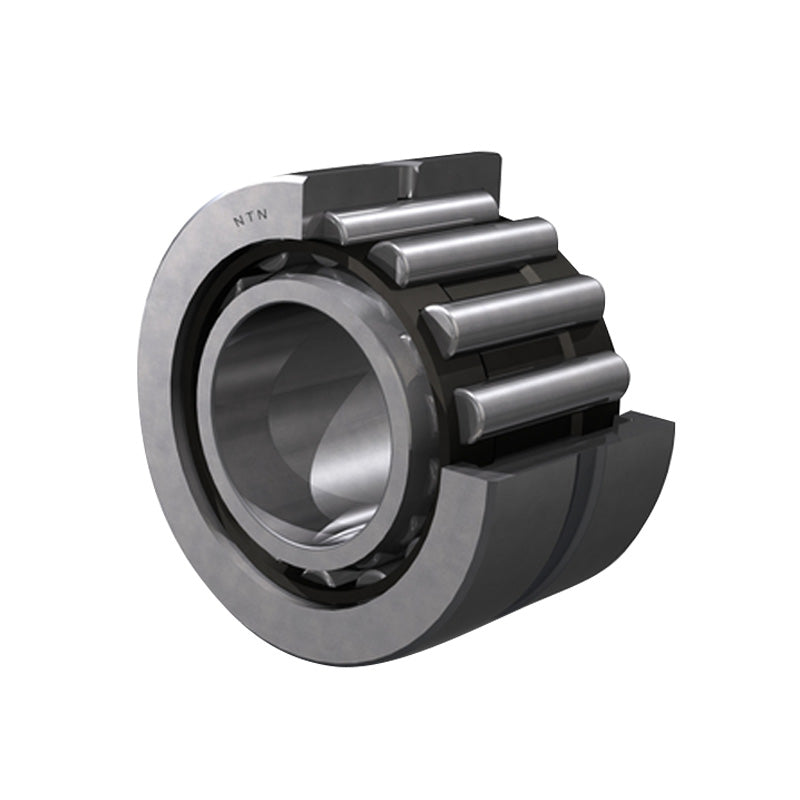

NTN NA4852 Machined Needle Roller Bearing with Shaft Sleeve 260x320x60mm - Allow 2-3 Days

NTN NA4852 Machined Needle Roller Bearing with Shaft Sleeve 260x320x60mm - Allow 2-3 Days
Regular price €1.529,41 ex VAT
Regular price Sale price €1.529,41 ex VAT
Sale Sold out

In stock

Price Break
3+ €1.243,32
4+ €1.177,88
9+ €1.112,45
19+ €1.047,01
49+ €1.020,83
99+ €994,66
499+ €863,78
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 260mm
D - Outside diameter 320mm
C - Width of bearing, drawn cup or outer ring 60mm
F - Under roller diameter 285mm
rs - Minimum fillet radius 2mm
s - Max axial offset 2mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 4mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 375 kN
C0r - Static load rating 1160 kN
N - Grease lubrication limit speed 950 tr/min
N - Oil lubrication limit speed 1400 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 269mm
Da max - Outer ring maximum shoulder diameter 311mm
ras max - Maximum shaft & housing fillet radius 2mm
