SKU: NA4901R-NTN

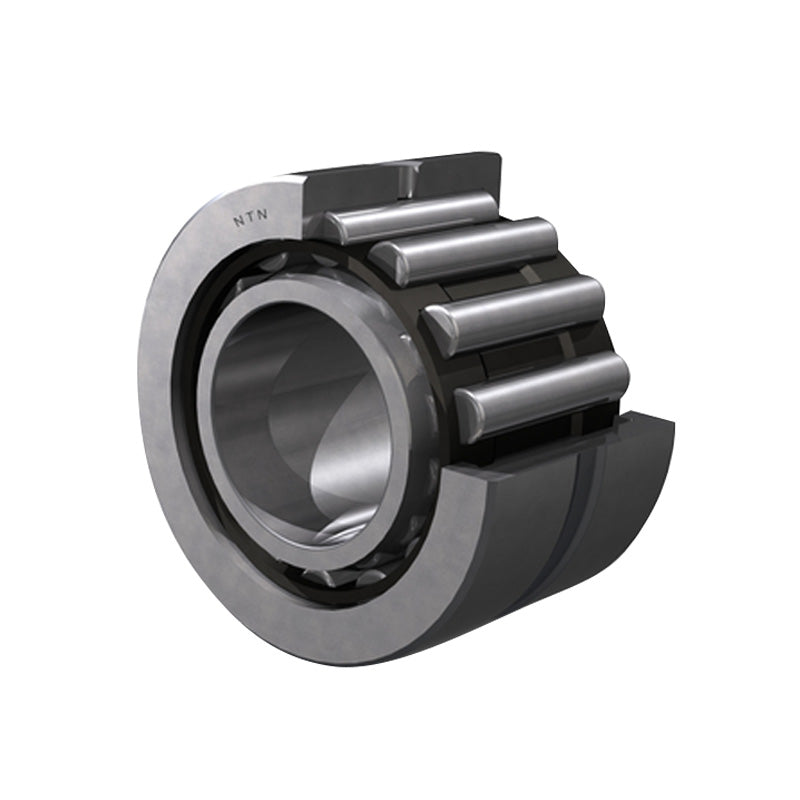

NTN NA4901R Machined Needle Roller Bearing with Shaft Sleeve 12x24x13mm - Allow 2-3 Days

NTN NA4901R Machined Needle Roller Bearing with Shaft Sleeve 12x24x13mm - Allow 2-3 Days
Regular price €15,51 ex VAT
Regular price Sale price €15,51 ex VAT
Sale Sold out

In stock

Price Break
3+ €13,14
4+ €12,61
9+ €12,34
19+ €11,94
49+ €11,68
99+ €11,01
499+ €9,29
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 12mm
D - Outside diameter 24mm
C - Width of bearing, drawn cup or outer ring 13mm
F - Under roller diameter 16mm
rs - Minimum fillet radius 0.3mm
s - Max axial offset 0.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 9.55 kN
C0r - Static load rating 10.9 kN
N - Grease lubrication limit speed 15000 tr/min
N - Oil lubrication limit speed 23000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 14mm
Da max - Outer ring maximum shoulder diameter 22mm
ras max - Maximum shaft & housing fillet radius 0.3mm
