SKU: NA4910LL/3AS-NTN

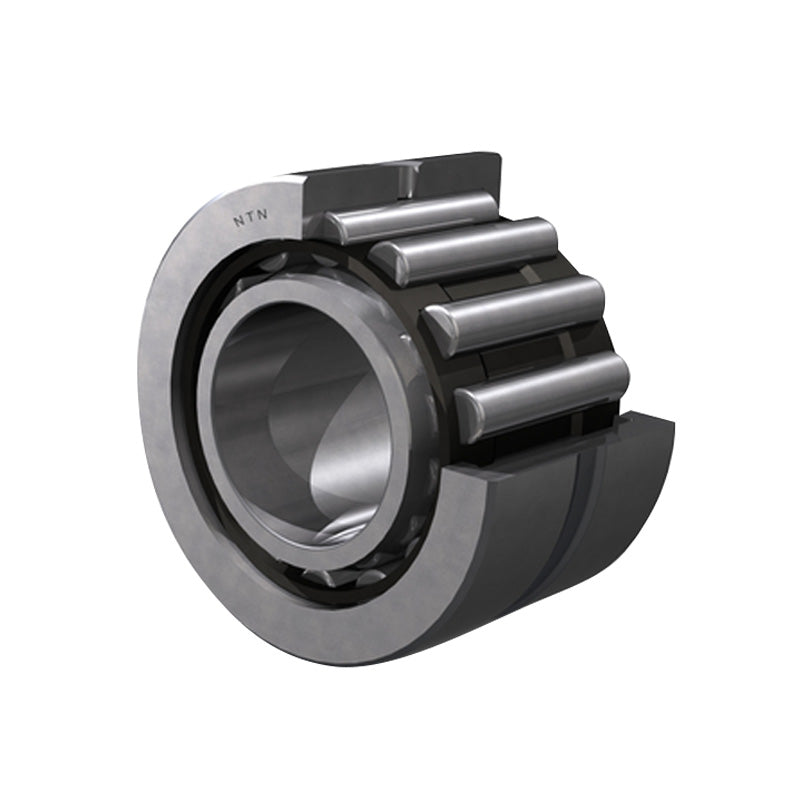

NTN NA4910LL/3AS Machined Needle Roller Bearing with Shaft Sleeve 50x72x22mm - Allow 2-3 Days

NTN NA4910LL/3AS Machined Needle Roller Bearing with Shaft Sleeve 50x72x22mm - Allow 2-3 Days
Regular price €51,77 ex VAT
Regular price Sale price €51,77 ex VAT
Sale Sold out

In stock

Price Break
3+ €43,86
4+ €42,09
9+ €41,20
19+ €39,87
49+ €38,98
99+ €36,77
499+ €31,01
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 50mm
D - Outside diameter 72mm
B - Width of bearing / Inner ring 23mm
C - Width of bearing, drawn cup or outer ring 22mm
F - Under roller diameter 58mm
rs - Minimum fillet radius 0.6mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Lubrication hole on innr ring? Yes
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 30.5 kN
C0r - Static load rating 64 kN
N - Grease lubrication limit speed 3400 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
da min - Inner ring minimum shoulder diameter 54mm
Da max - Outer ring maximum shoulder diameter 61mm
Db max - Outer ring maximum smooth shaft shoulder diameter 68mm
ras max - Maximum shaft & housing fillet radius 0.6mm
