SKU: NA4917R-NTN

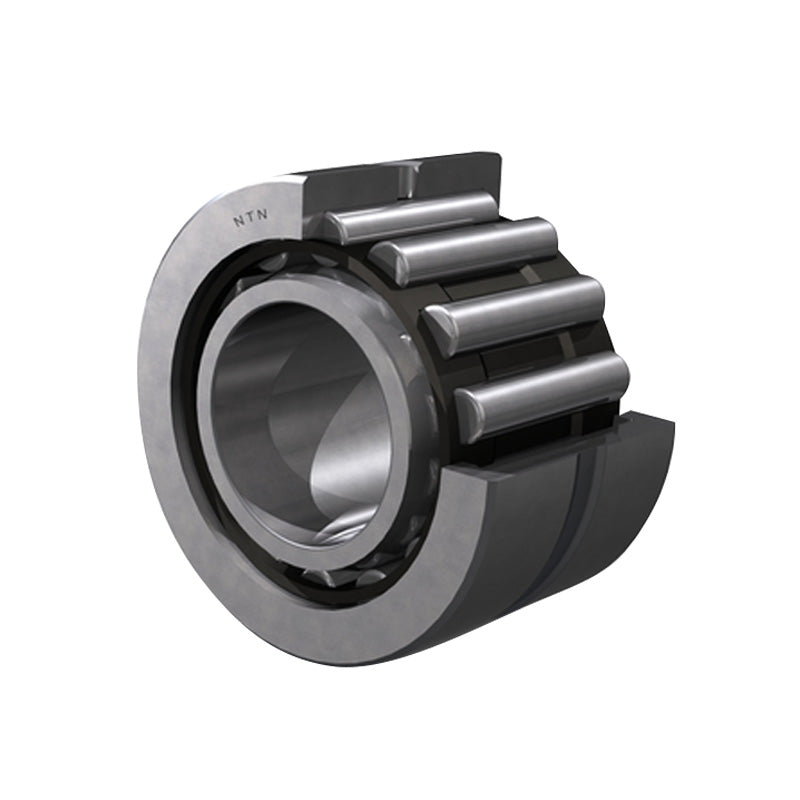

NTN NA4917R Machined Needle Roller Bearing with Shaft Sleeve 85x120x35mm - Allow 2-3 Days

NTN NA4917R Machined Needle Roller Bearing with Shaft Sleeve 85x120x35mm - Allow 2-3 Days
Regular price €155,26 ex VAT
Regular price Sale price €155,26 ex VAT
Sale Sold out

In stock

Price Break
3+ €131,53
4+ €126,22
9+ €123,56
19+ €119,57
49+ €116,92
99+ €110,27
499+ €93,00
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 85mm
D - Outside diameter 120mm
C - Width of bearing, drawn cup or outer ring 35mm
F - Under roller diameter 100mm
rs - Minimum fillet radius 1.1mm
s - Max axial offset 1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 112 kN
C0r - Static load rating 237 kN
N - Grease lubrication limit speed 2700 tr/min
N - Oil lubrication limit speed 4000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 91.5mm
Da max - Outer ring maximum shoulder diameter 113.5mm
ras max - Maximum shaft & housing fillet radius 1mm
