SKU: NA6905-MB

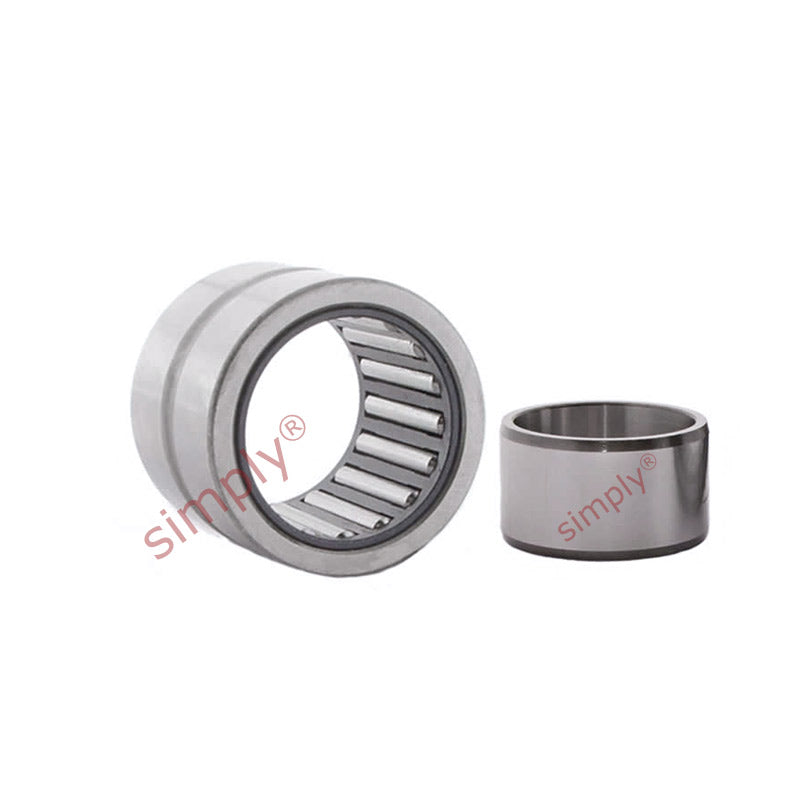

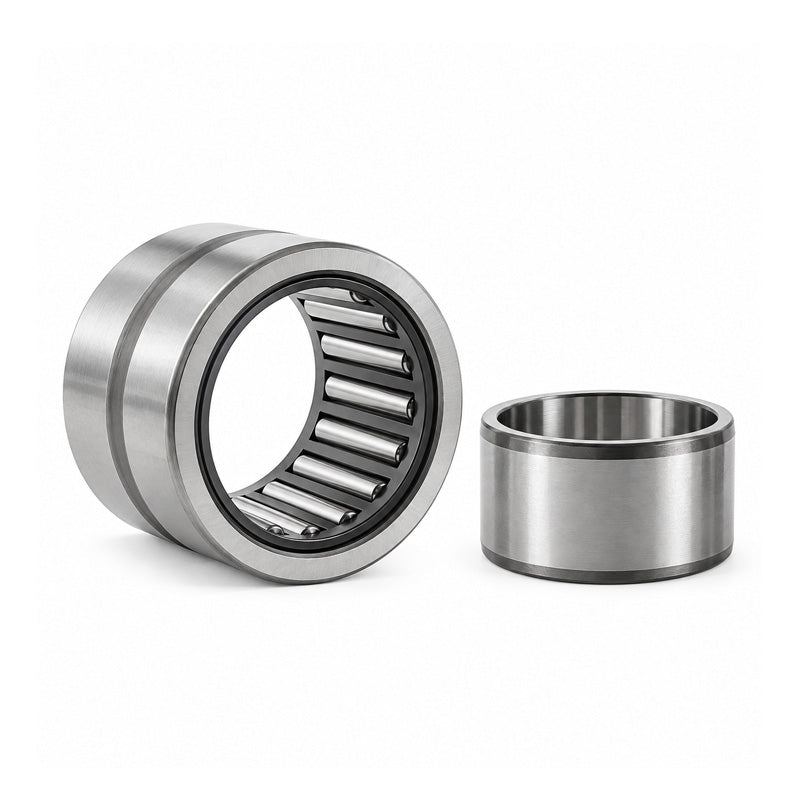

Major Brand NA6905 Needle Roller Bearing With Shaft Sleeve 25x42x30mm
Major Brand NA6905 Needle Roller Bearing With Shaft Sleeve 25x42x30mm
Regular price
€33,29
ex VAT
Regular price
Sale price
€33,29
ex VAT
In stock
Price Break
10+
€25,36
19+
€23,93
29+
€23,65
39+
€23,36
49+
€23,08
74+
€22,79
99+
€21,37
199+
€21,08
249+
€20,80
499+
€20,51
999+
€19,94
Description
Description
|
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 30mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| B | 30mm |
| Dynamic load | 38000 N |
| Static load | 62000 N |
| Fatigue load limit Pu | 8150 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| F | 30mm |
| r1r2 | 0.3mm |
| S (axial disp) | 1mm |
| da min | 27mm |
| Da max | 40mm |
| ra max | 0.3mm |
