SKU: NA6907R-NTN

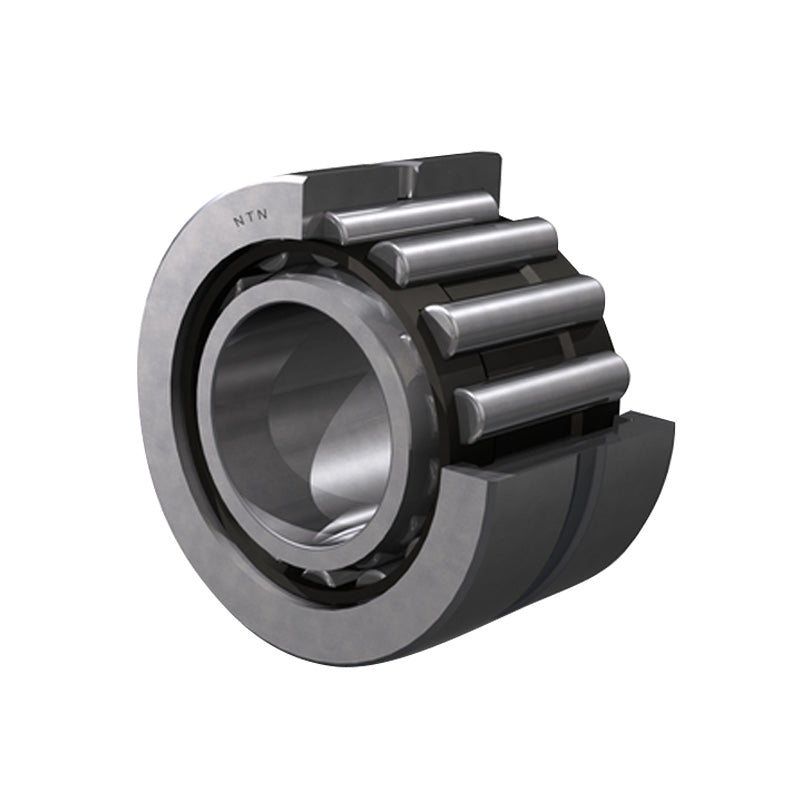

NTN NA6907R Machined Needle Roller Bearing with Shaft Sleeve 35x55x36mm

NTN NA6907R Machined Needle Roller Bearing with Shaft Sleeve 35x55x36mm
Regular price €46,53 ex VAT
Regular price Sale price €46,53 ex VAT
Sale Sold out

In stock

Price Break
3+ €35,44
4+ €33,45
9+ €33,05
19+ €32,65
49+ €32,25
99+ €31,86
499+ €29,87
999+ €29,47
1999+ €29,07
2999+ €28,67
4999+ €27,87
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 35mm
D - Outside diameter 55mm
C - Width of bearing, drawn cup or outer ring 36mm
F - Under roller diameter 42mm
rs - Minimum fillet radius 0.6mm
s - Max axial offset 0.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 49 kN
C0r - Static load rating 86.5 kN
N - Grease lubrication limit speed 6500 tr/min
N - Oil lubrication limit speed 9500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 39mm
Da max - Outer ring maximum shoulder diameter 51mm
ras max - Maximum shaft & housing fillet radius 0.6mm
