SKU: NA6911R-NTN

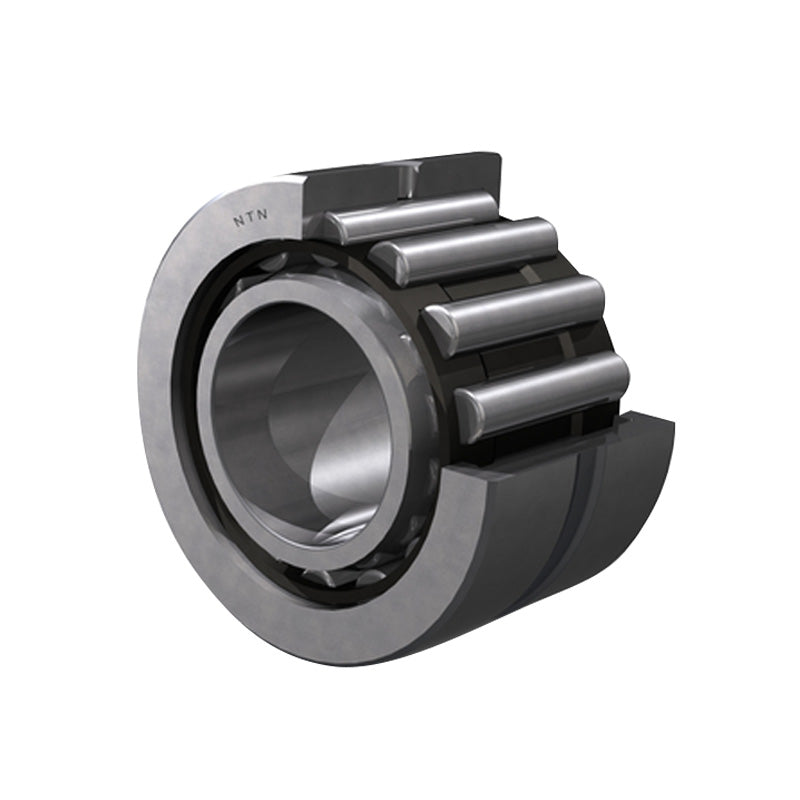

NTN NA6911R Machined Needle Roller Bearing with Shaft Sleeve 55x80x45mm - Allow 2-3 Days

NTN NA6911R Machined Needle Roller Bearing with Shaft Sleeve 55x80x45mm - Allow 2-3 Days
Regular price €90,66 ex VAT
Regular price Sale price €90,66 ex VAT
Sale Sold out

In stock

Price Break
3+ €76,80
4+ €73,70
9+ €72,15
19+ €69,82
49+ €68,27
99+ €64,39
499+ €54,31
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 55mm
D - Outside diameter 80mm
C - Width of bearing, drawn cup or outer ring 45mm
F - Under roller diameter 63mm
rs - Minimum fillet radius 1mm
s - Max axial offset 1.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 94 kN
C0r - Static load rating 183 kN
N - Grease lubrication limit speed 4300 tr/min
N - Oil lubrication limit speed 6500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 60mm
Da max - Outer ring maximum shoulder diameter 75mm
ras max - Maximum shaft & housing fillet radius 1mm
