SKU: NA6913R-NTN

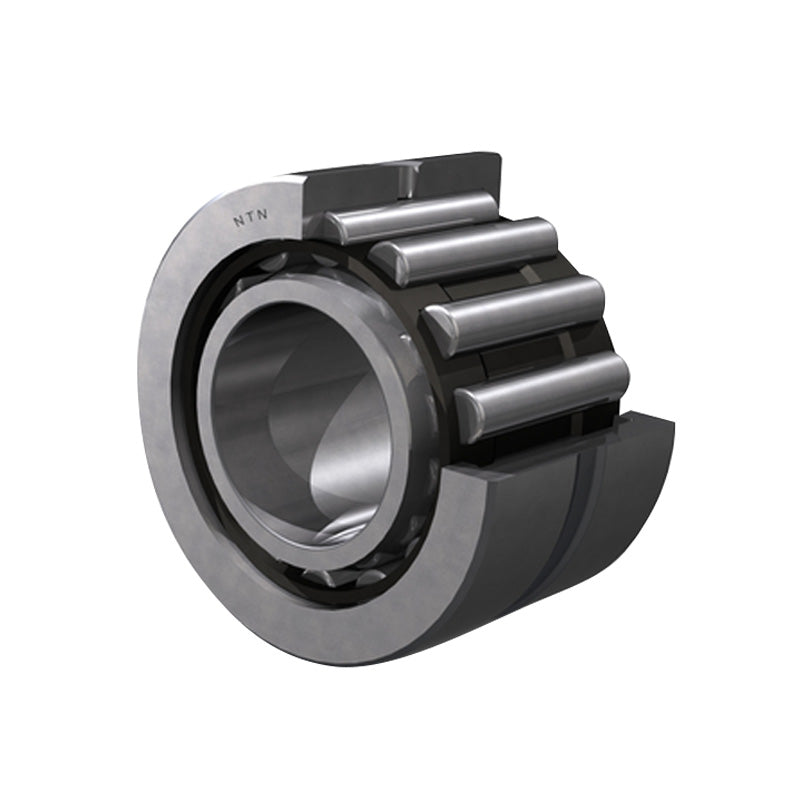

NTN NA6913R Machined Needle Roller Bearing with Shaft Sleeve 65x90x45mm - Allow 2-3 Days

NTN NA6913R Machined Needle Roller Bearing with Shaft Sleeve 65x90x45mm - Allow 2-3 Days
Regular price €129,46 ex VAT
Regular price Sale price €129,46 ex VAT
Sale Sold out

In stock

Price Break
3+ €109,67
4+ €105,24
9+ €103,03
19+ €99,70
49+ €97,49
99+ €91,95
499+ €77,55
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 65mm
D - Outside diameter 90mm
C - Width of bearing, drawn cup or outer ring 45mm
F - Under roller diameter 72mm
rs - Minimum fillet radius 1mm
s - Max axial offset 1.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 97 kN
C0r - Static load rating 198 kN
N - Grease lubrication limit speed 3700 tr/min
N - Oil lubrication limit speed 5500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 70mm
Da max - Outer ring maximum shoulder diameter 85mm
ras max - Maximum shaft & housing fillet radius 1mm
