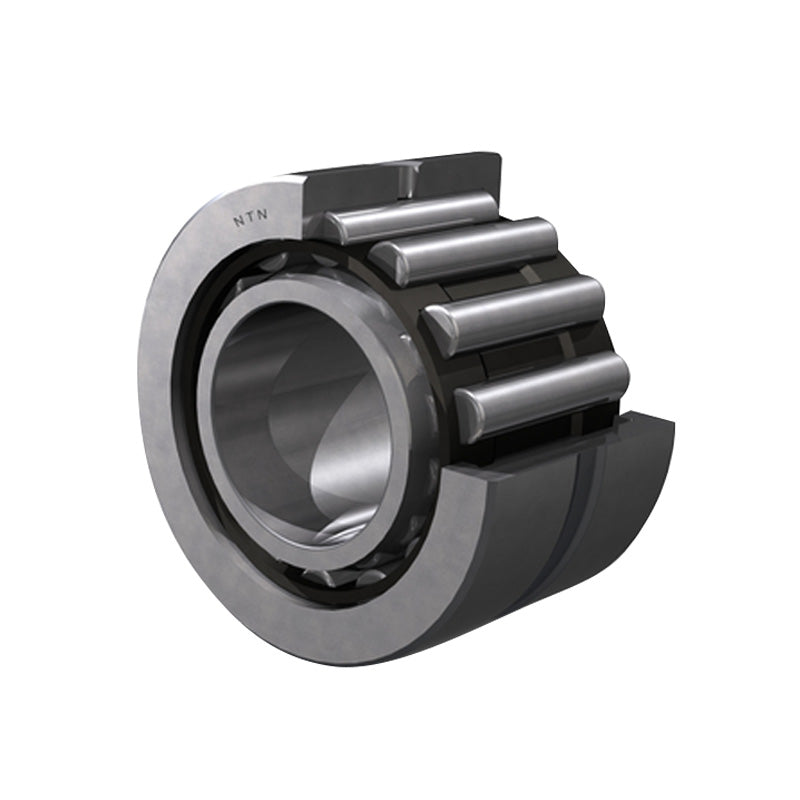

NTN NA6917R Machined Needle Roller Bearing with Shaft Sleeve 85x120x63mm - Allow 2-3 Days

NTN NA6917R Machined Needle Roller Bearing with Shaft Sleeve 85x120x63mm - Allow 2-3 Days
Regular price €233,02 ex VAT
Regular price Sale price €233,02 ex VAT
Sale Sold out

In stock

Price Break
3+ €197,41
4+ €189,43
9+ €185,44
19+ €179,46
49+ €175,47
99+ €165,50
499+ €139,58
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 85mm
D - Outside diameter 120mm
C - Width of bearing, drawn cup or outer ring 63mm
F - Under roller diameter 100mm
rs - Minimum fillet radius 1.1mm
s - Max axial offset 1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 169 kN
C0r - Static load rating 400 kN
N - Grease lubrication limit speed 2700 tr/min
N - Oil lubrication limit speed 4000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 91.5mm
Da max - Outer ring maximum shoulder diameter 104mm
ras max - Maximum shaft & housing fillet radius 1.1mm
