SKU: NAO17x35x16-EU

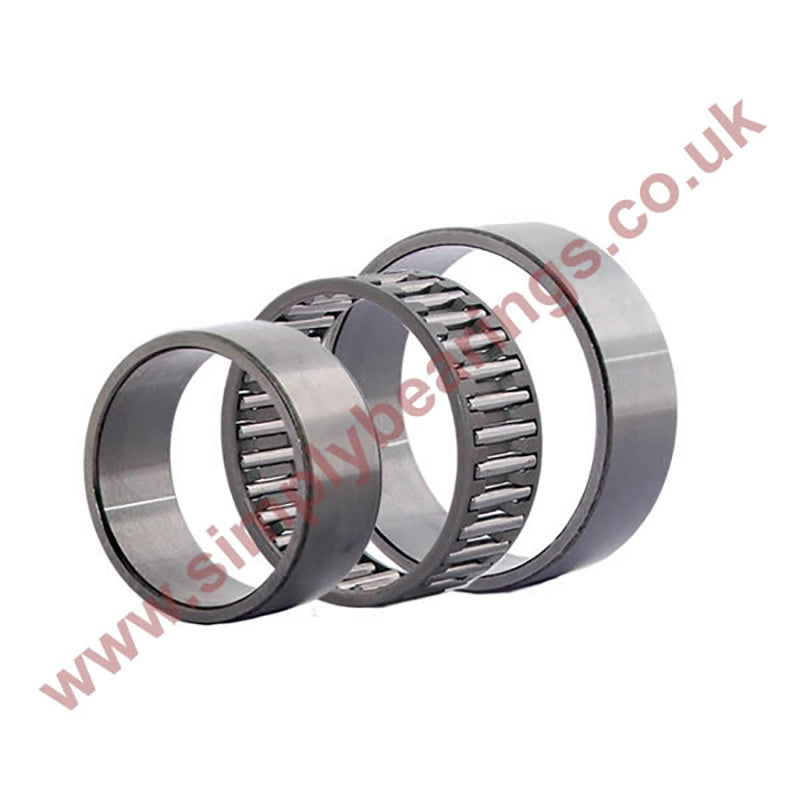

NAO17x35x16 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
NAO17x35x16 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
Regular price
€9,90
ex VAT
Regular price
Sale price
€9,90
ex VAT
In stock
Price Break
10+
€7,54
19+
€7,11
29+
€7,03
39+
€6,95
49+
€6,86
74+
€6,78
99+
€6,35
199+
€6,27
249+
€6,18
499+
€6,10
999+
€5,93
Description
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 16mm |
| Dynamic load C | 19400 N |
| Static load Co | 25500 N |
| Fatigue load limit Pu | 3050 N |
| Speed in grease | 11000 rpm |
| Speed in oil | 17000 rpm |
| E | 29mm |
| F | 22mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 28.4mm |
| db | 21.5mm |
| Da | 29.5mm |
| Db | 22.6mm |
| ra max | 0.3mm |
| Weight | 78 g |
