SKU: NAO25x40x17-MB

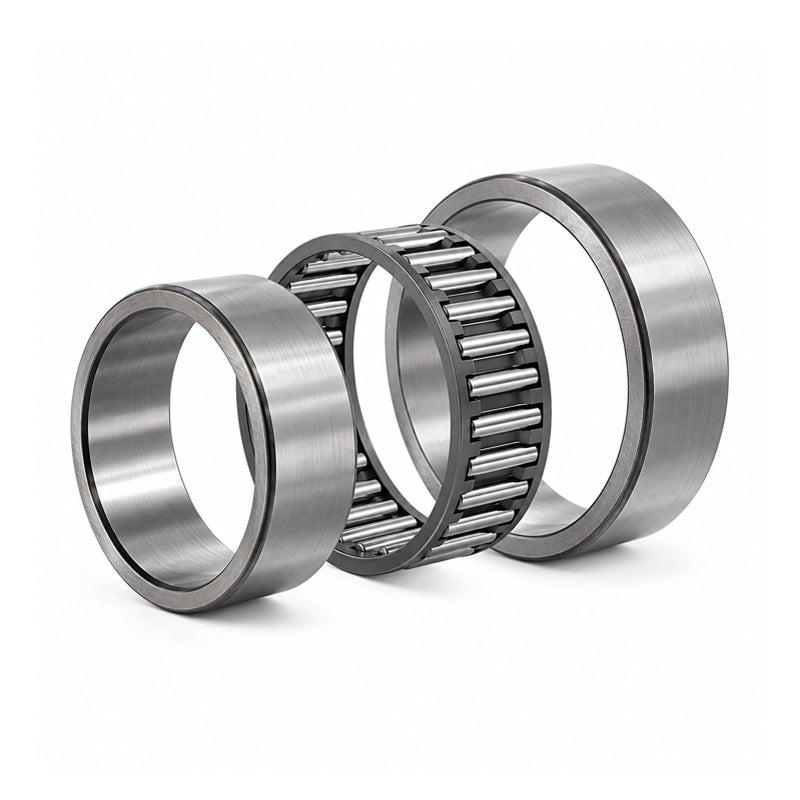

Major Brand NAO25x40x17 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO25x40x17 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
€32,66
ex VAT
Regular price
Sale price
€32,66
ex VAT
In stock
Price Break
10+
€24,87
19+
€23,47
29+
€23,19
39+
€22,92
49+
€22,64
74+
€22,36
99+
€20,96
199+
€20,68
249+
€20,40
499+
€20,12
999+
€19,56
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 40mm
- Width:
- 17mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 40mm |
| B | 17mm |
| Dynamic load | 18700 N |
| Static load | 34000 N |
| Fatigue load limit Pu | 4050 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| E | 35mm |
| F | 30mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.8mm |
| da | 34.4mm |
| db | 29.5mm |
| Da | 35.5mm |
| Db | 30.6mm |
| ra max | 0.3mm |
| Weight | 88 g |
