SKU: NAO40x55x17-MB

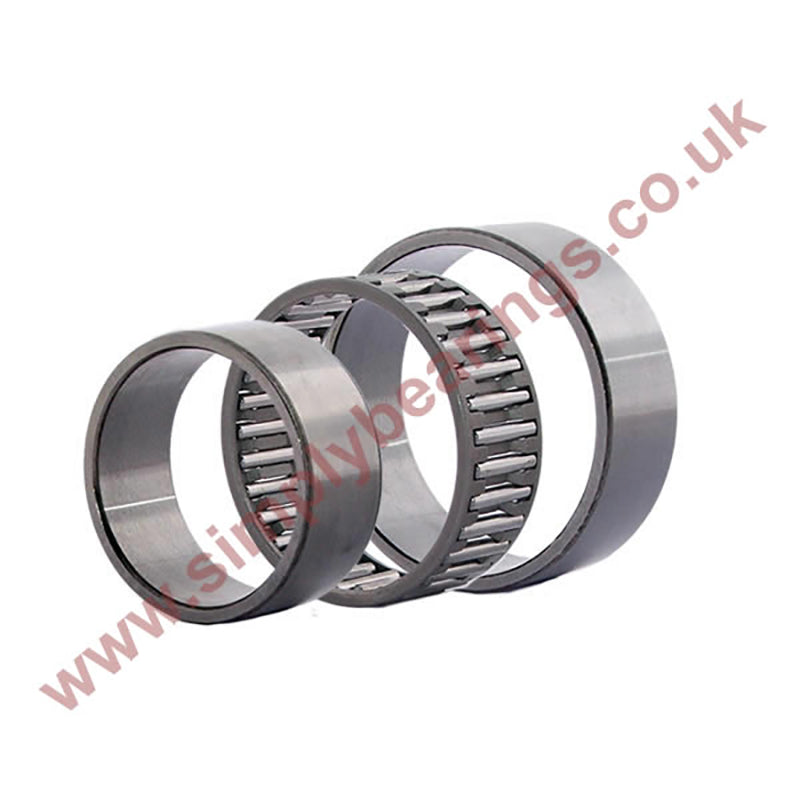

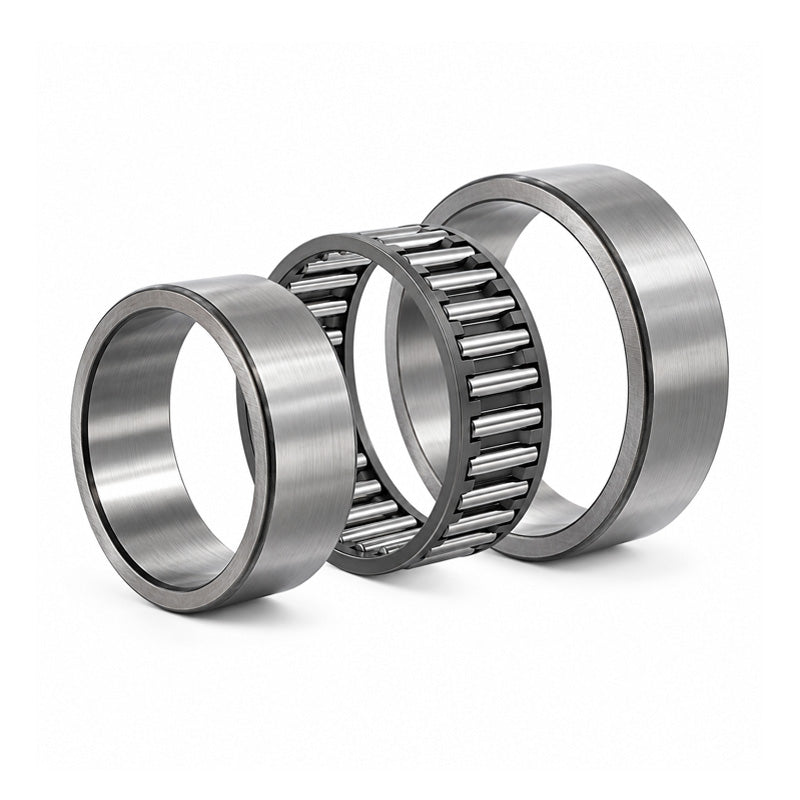

Major Brand NAO40x55x17 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO40x55x17 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
€39,59
ex VAT
Regular price
Sale price
€39,59
ex VAT
In stock
Price Break
10+
€30,15
19+
€28,46
29+
€28,12
39+
€27,78
49+
€27,44
74+
€27,10
99+
€25,41
199+
€25,07
249+
€24,73
499+
€24,39
999+
€23,72
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 55mm
- Width:
- 17mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 55mm |
| B | 17mm |
| Dynamic load | 21600 N |
| Static load | 46500 N |
| Fatigue load limit Pu | 5600 N |
| Speed in grease | 6300 rpm |
| Speed in oil | 9000 rpm |
| E | 50mm |
| F | 45mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.8mm |
| da | 49.2mm |
| db | 44.5mm |
| Da | 50.5mm |
| Db | 45.6mm |
| ra max | 0.3mm |
| Weight | 130 g |
