SKU: NCF.3004.CV.MB

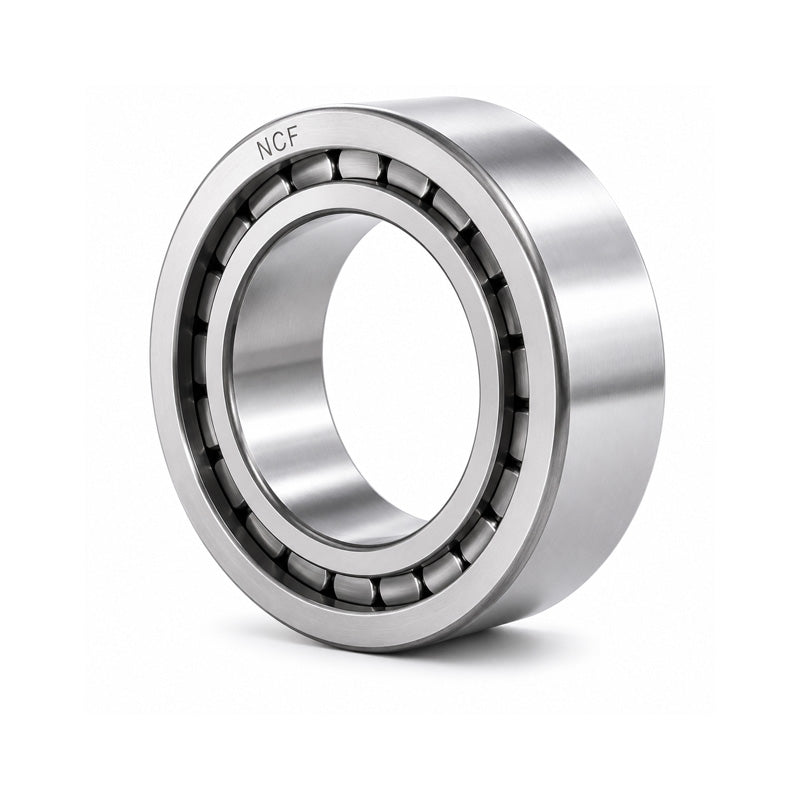

NCF3004V Full Complement Cylindrical Roller Bearing 20x42x16mm
NCF3004V Full Complement Cylindrical Roller Bearing 20x42x16mm
Regular price
€54,83
ex VAT
Regular price
Sale price
€54,83
ex VAT
Equivalent to: SL18 3004 NCF 3004V
In stock
Price Break
10+
€41,76
19+
€39,41
29+
€38,94
39+
€38,47
49+
€38,00
74+
€37,53
99+
€35,19
199+
€34,72
249+
€34,25
499+
€33,78
999+
€32,84
Share this product
Description
Description
|
NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing Benefits:Tolerate axial load in one direction, none separable construction |
Equivalent: SL18 3004 NCF 3004V
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B | 16mm |
| Weight | 0.11kg |
