SKU: NJ2207ECP-SKF

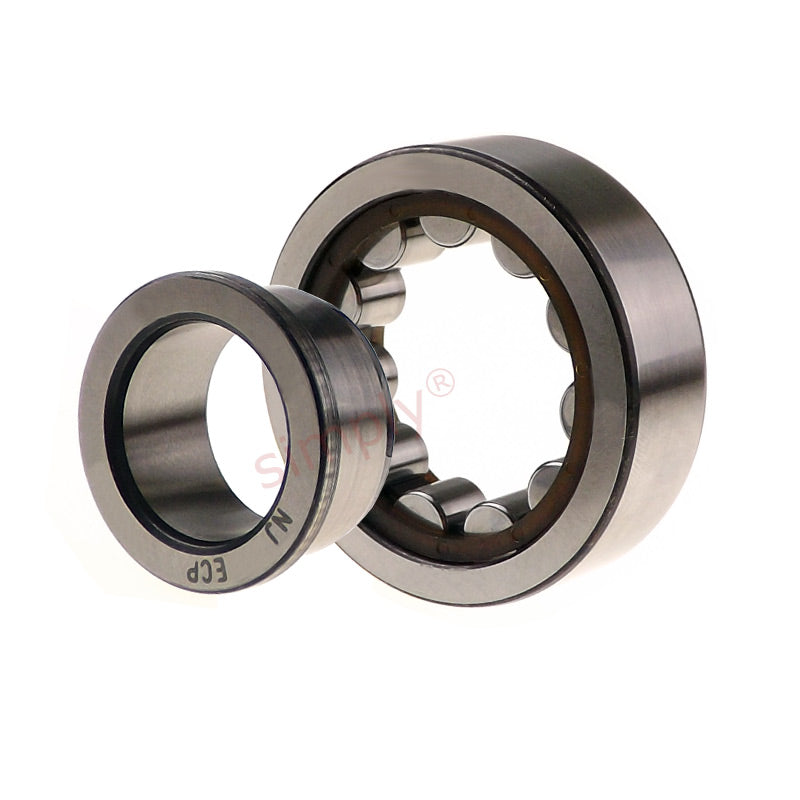

SKF NJ2207ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 35x72x23mm
SKF NJ2207ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 35x72x23mm
Regular price
€61,28
ex VAT
Regular price
Sale price
€61,28
ex VAT
In stock
Price Break
10+
€46,67
19+
€44,05
29+
€43,53
39+
€43,00
49+
€42,48
74+
€41,95
99+
€39,33
199+
€38,81
249+
€38,28
499+
€37,76
999+
€36,71
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 23mm |
| Dynamic load C | 69.5 kN |
| Static load Co | 63 kN |
| Fatigue load limit Pu | 8.15 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.41 kg |
| Alt cage | J.ML |
| d1 | 48.1mm |
| D1 | 60.7mm |
| F,E | 44mm |
| r1r2 min | 1.1mm |
| r3r4 min | 0.6mm |
| S | 2.8mm |
| da min | 42mm |
| da max | 42mm |
| db | 50mm |
| Da max | 65mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.2 |
