SKU: NJ2209ECP/C3-SKF

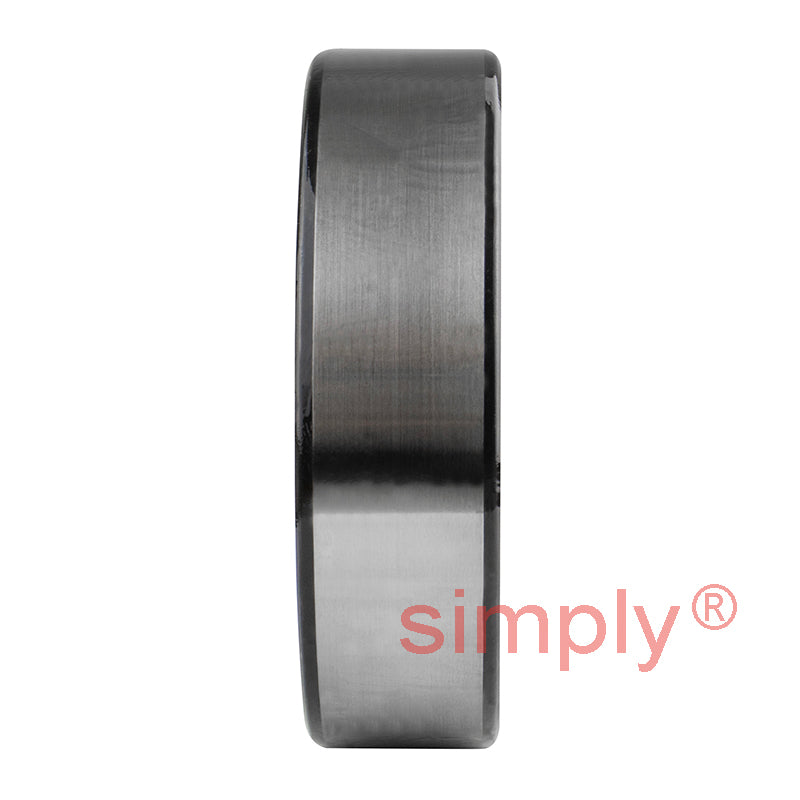

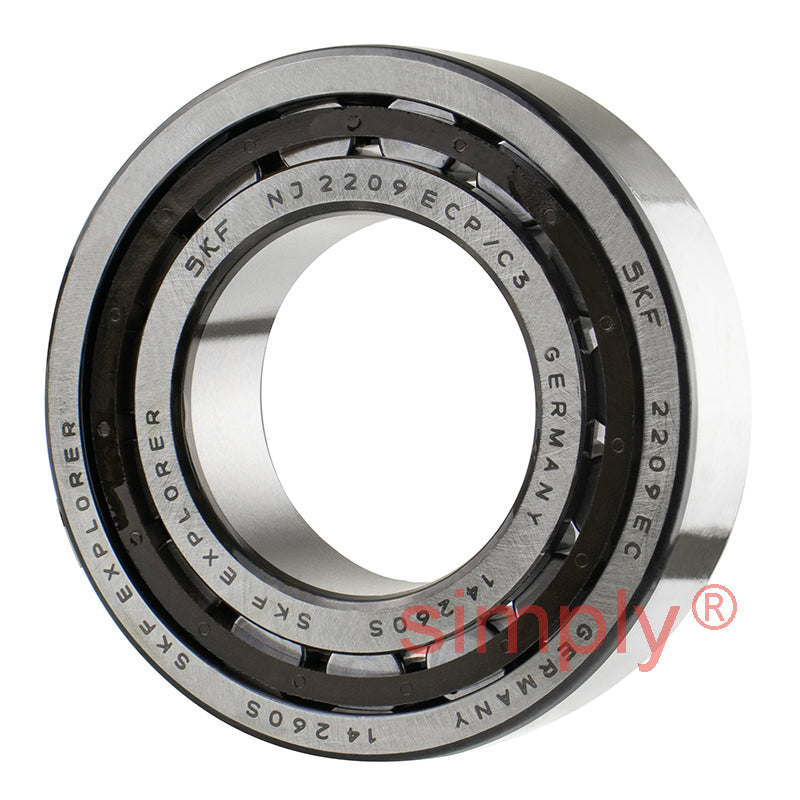

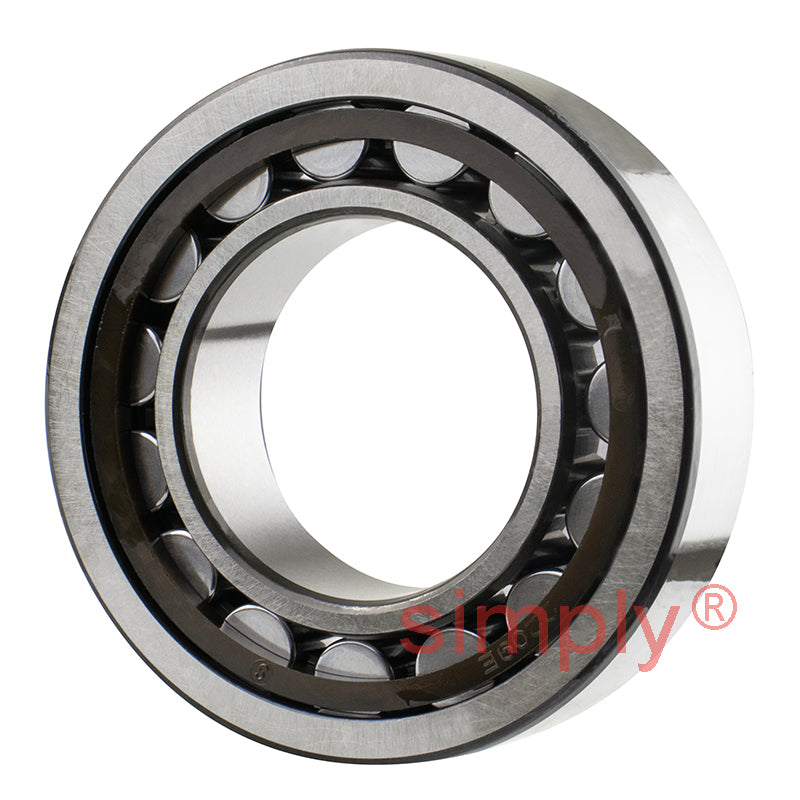

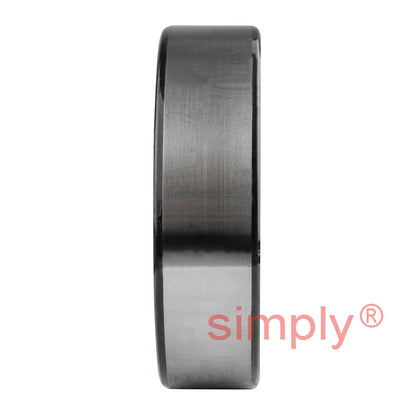

SKF NJ2209ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 45x85x23mm
SKF NJ2209ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 45x85x23mm
Regular price
€80,08
ex VAT
Regular price
Sale price
€80,08
ex VAT
In stock
Price Break
10+
€60,99
19+
€57,56
29+
€56,88
39+
€56,19
49+
€55,51
74+
€54,82
99+
€51,40
199+
€50,71
249+
€50,03
499+
€49,34
999+
€47,97
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 23mm |
| Dynamic load C | 85 kN |
| Static load Co | 81.5 kN |
| Fatigue load limit Pu | 10.6 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.54 kg |
| Alt cage | J |
| d1 | 59mm |
| D1 | 73mm |
| F,E | 54.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| S | 1.7mm |
| da min | 52mm |
| da max | 53mm |
| db | 56mm |
| Da max | 78mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.2 |
