SKU: NJ2215ECP-SKF

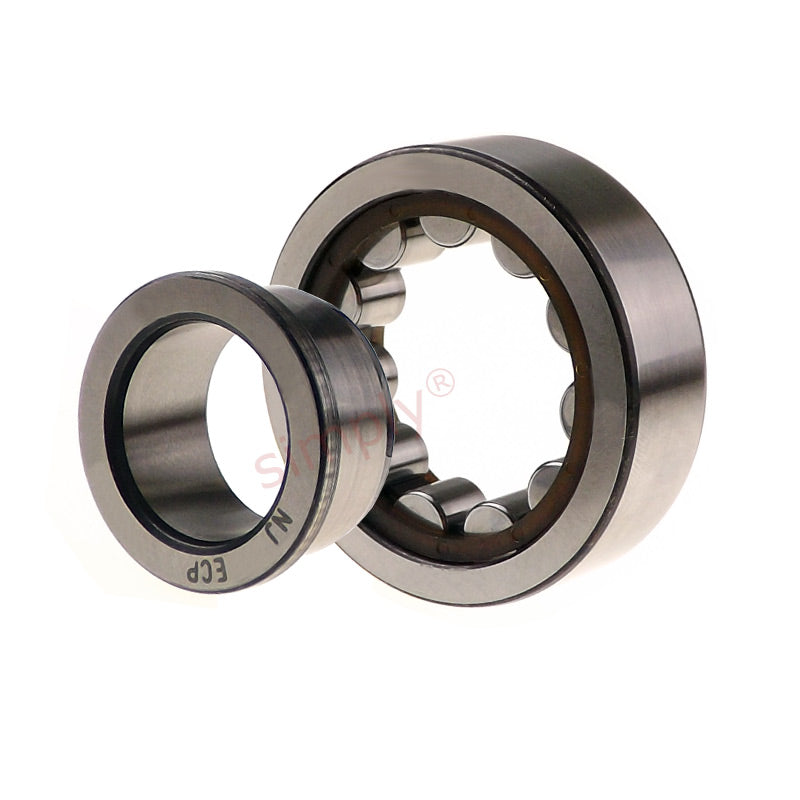

SKF NJ2215ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 75x130x31mm
SKF NJ2215ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 75x130x31mm
Regular price
€158,06
ex VAT
Regular price
Sale price
€158,06
ex VAT
In stock
Price Break
10+
€120,38
19+
€113,62
29+
€112,27
39+
€110,91
49+
€109,56
74+
€108,21
99+
€101,44
199+
€100,09
249+
€98,74
499+
€97,39
999+
€94,68
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| B | 31mm |
| Dynamic load C | 186 kN |
| Static load Co | 208 kN |
| Fatigue load limit Pu | 27 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 6000 rpm |
| Weight | 1.6 kg |
| Alt cage | J.ML |
| d1 | 94.3mm |
| D1 | 114mm |
| F,E | 88.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 1.7mm |
| da min | 84mm |
| da max | 86mm |
| db | 97mm |
| Da max | 121mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.2 |
