SKU: NJ2216ECP/C3-SKF

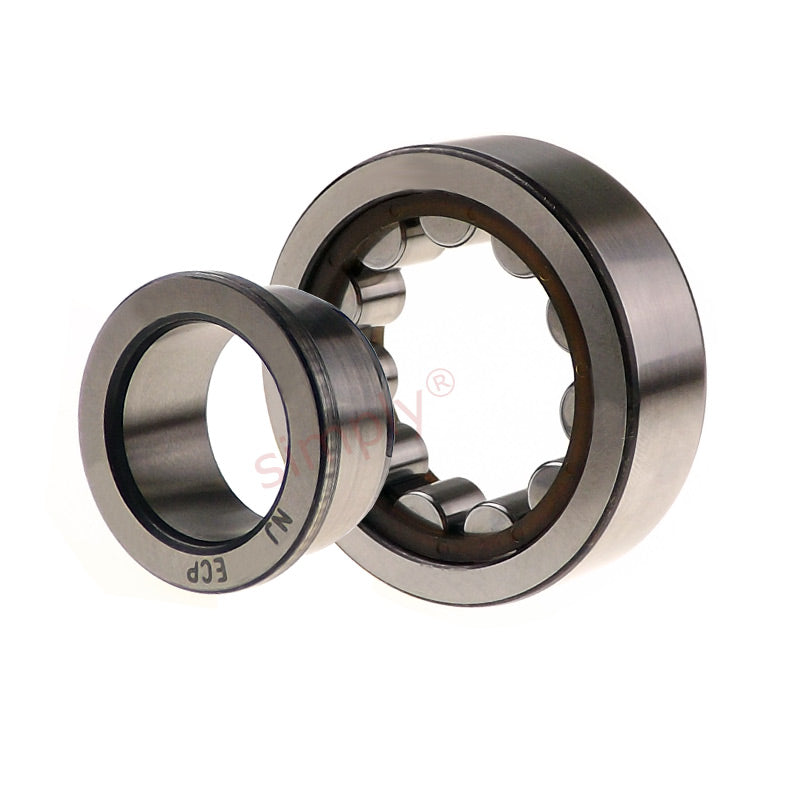

SKF NJ2216ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 80x140x33mm
SKF NJ2216ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 80x140x33mm
Regular price
€195,67
ex VAT
Regular price
Sale price
€195,67
ex VAT
In stock
Price Break
10+
€149,02
19+
€140,65
29+
€138,98
39+
€137,30
49+
€135,63
74+
€133,95
99+
€125,58
199+
€123,91
249+
€122,23
499+
€120,56
999+
€117,21
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 80mm |
|---|---|
| D | 140mm |
| B | 33mm |
| Dynamic load C | 212 kN |
| Static load Co | 245 kN |
| Fatigue load limit Pu | 31 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 5600 rpm |
| Weight | 2.05 kg |
| Alt cage | J.M.ML |
| d1 | 101mm |
| D1 | 123mm |
| F,E | 95.3mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| S | 1.4mm |
| da min | 91mm |
| da max | 93mm |
| db | 104mm |
| Da max | 129mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.2 |
| Angle ring | HJ216EC |
| Angle ring weight | 0.21 kg |
| B1 | 8mm |
| B2 | 12.5mm |
