SKU: NJ2310ECP-SKF

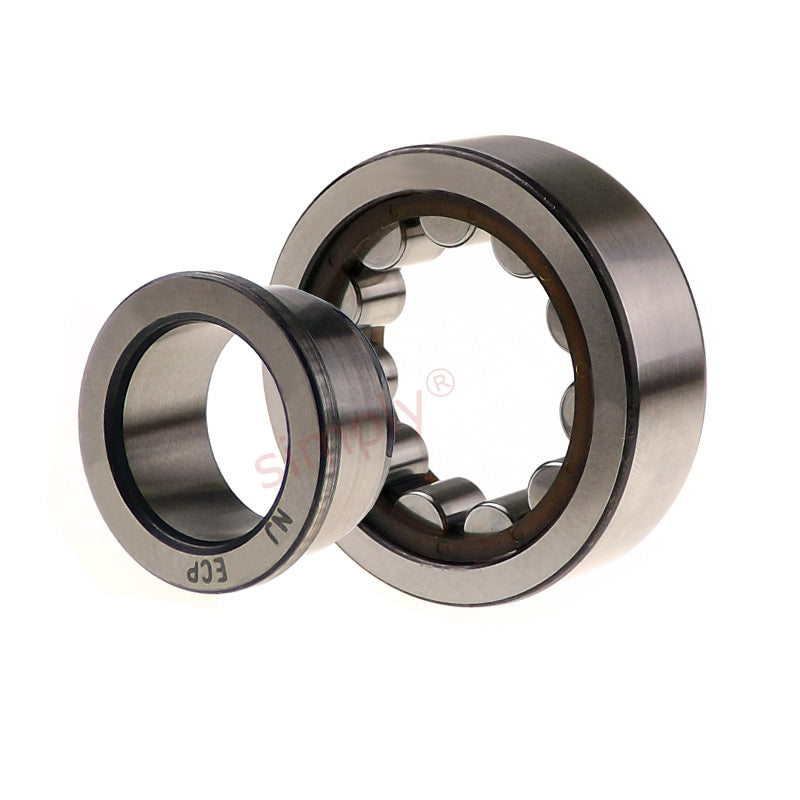

SKF NJ2310ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 50x110x40mm
SKF NJ2310ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 50x110x40mm
Regular price
€137,89
ex VAT
Regular price
Sale price
€137,89
ex VAT
In stock
Price Break
10+
€105,02
19+
€99,12
29+
€97,94
39+
€96,76
49+
€95,58
74+
€94,40
99+
€88,50
199+
€87,32
249+
€86,14
499+
€84,96
999+
€82,60
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 40mm |
| Dynamic load C | 186 kN |
| Static load Co | 186 kN |
| Fatigue load limit Pu | 24.5 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 8000 rpm |
| Weight | 1.77 kg |
| Alt cage | ML |
| d1 | 71.2mm |
| D1 | 92.1mm |
| F,E | 65mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| S | 3.4mm |
| da min | 61mm |
| da max | 63mm |
| db | 73mm |
| Da max | 99mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.25 |
