SKU: NJ309ECP/C3-SKF

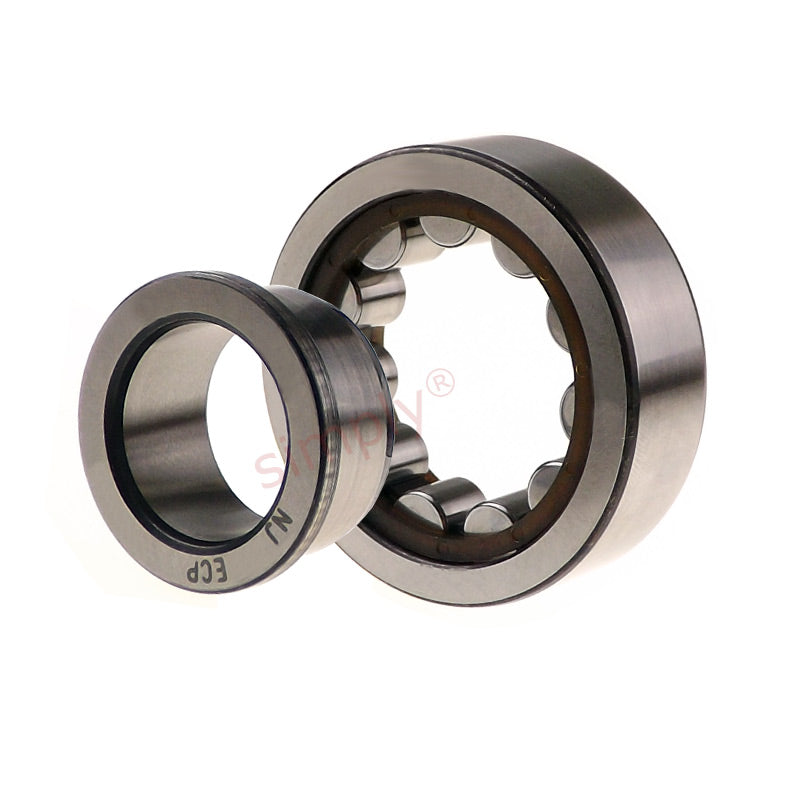

SKF NJ309ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 45x100x25mm
SKF NJ309ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 45x100x25mm
Regular price
€84,26
ex VAT
Regular price
Sale price
€84,26
ex VAT
In stock
Price Break
10+
€64,17
19+
€60,57
29+
€59,84
39+
€59,12
49+
€58,40
74+
€57,68
99+
€54,08
199+
€53,36
249+
€52,63
499+
€51,91
999+
€50,47
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 112 kN |
| Static load Co | 100 kN |
| Fatigue load limit Pu | 12.9 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 8500 rpm |
| Weight | 0.92 kg |
| Alt cage | J.M.ML |
| d1 | 64.4mm |
| D1 | 83.8mm |
| F,E | 58.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 1.7mm |
| da min | 54mm |
| da max | 56mm |
| db | 67mm |
| Da max | 91mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
| Angle ring | HJ309EC |
| Angle ring weight | 0.11 kg |
| B1 | 7mm |
| B2 | 11.5mm |
