SKU: NJ320ECJ-SKF

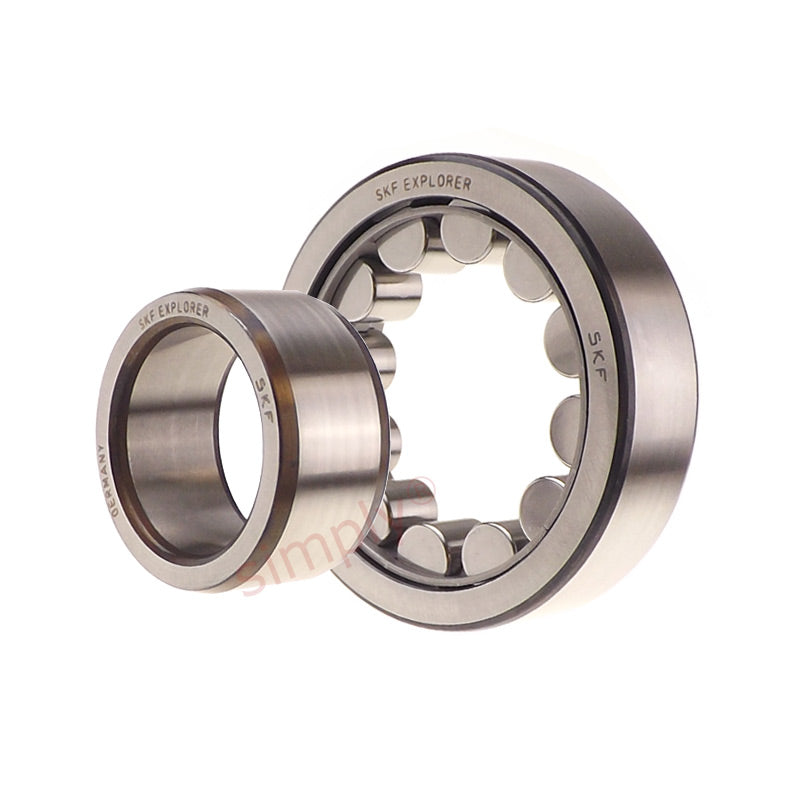

SKF NJ320ECJ Single Row Cylindrical Roller Bearing with Pressed Steel Cage 100x215x47mm
SKF NJ320ECJ Single Row Cylindrical Roller Bearing with Pressed Steel Cage 100x215x47mm
Regular price
€604,87
ex VAT
Regular price
Sale price
€604,87
ex VAT
In stock
Price Break
10+
€538,33
19+
€508,09
29+
€502,04
39+
€495,99
49+
€489,94
74+
€483,90
99+
€453,65
199+
€447,60
249+
€441,56
499+
€435,51
999+
€423,41
Couldn't load pickup availability
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 215mm
- Width:
- 47mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 100mm |
|---|---|
| D | 215mm |
| B | 47mm |
| Dynamic load C | 450 kN |
| Static load Co | 440 kN |
| Fatigue load limit Pu | 51 kN |
| Reference speed | 3200 rpm |
| Limiting speed | 3800 rpm |
| Weight | 7.65 kg |
| Alt cage | J.M.ML |
| d1 | 139mm |
| D1 | 182mm |
| F,E | 127.5mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 2.9mm |
| da min | 114mm |
| da max | 124mm |
| db | 142mm |
| Da max | 201mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
| Angle ring | HJ320EC |
| Angle Ring Weight | 0.87 kg |
| B1 | 13mm |
| B2 | 20.5mm |
