SKU: NJ412-EU

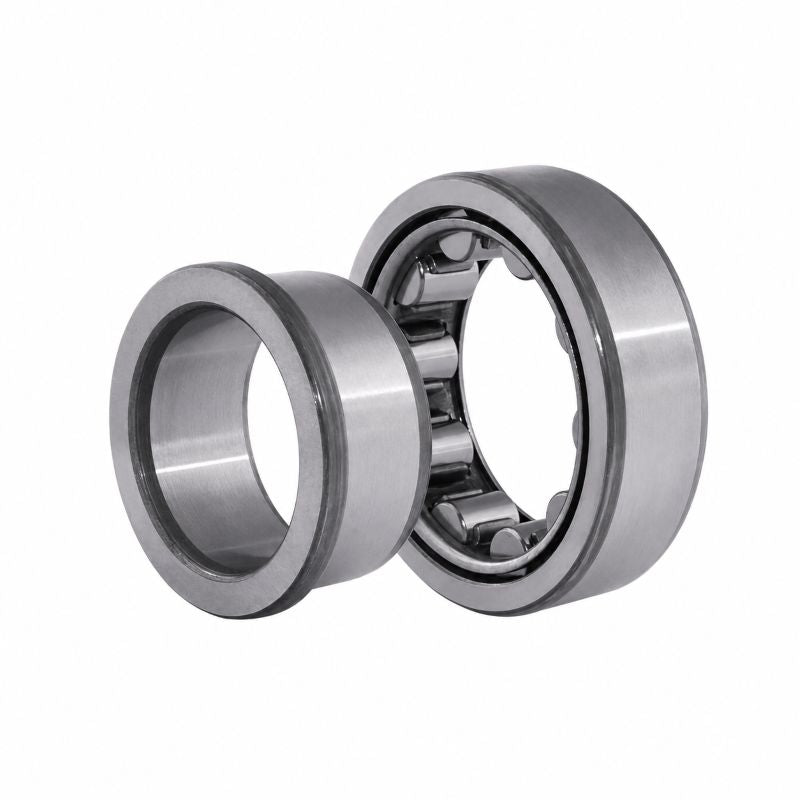

NJ412 Budget Single Row Cylindrical Roller Bearing 60x150x35mm
NJ412 Budget Single Row Cylindrical Roller Bearing 60x150x35mm
Regular price
€199,74
ex VAT
Regular price
Sale price
€199,74
ex VAT
In stock
Price Break
10+
€152,12
19+
€143,57
29+
€141,86
39+
€140,16
49+
€138,45
74+
€136,74
99+
€128,19
199+
€126,48
249+
€124,77
499+
€123,06
999+
€119,64
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 168 kN |
| Static load Co | 173 kN |
| Fatigue load limit Pu | 22 kN |
| Reference speed | 5000 rpm |
| Limiting speed | 6000 rpm |
| Weight | 3.1 kg |
| d1 | 91.8mm |
| D1 | 117mm |
| F, E | 83mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 2.5mm |
| da min | 74mm |
| da max | 80mm |
| db min | 94mm |
| Da max | 136mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
