SKU: NK105/26R+1R95X105X26-NTN

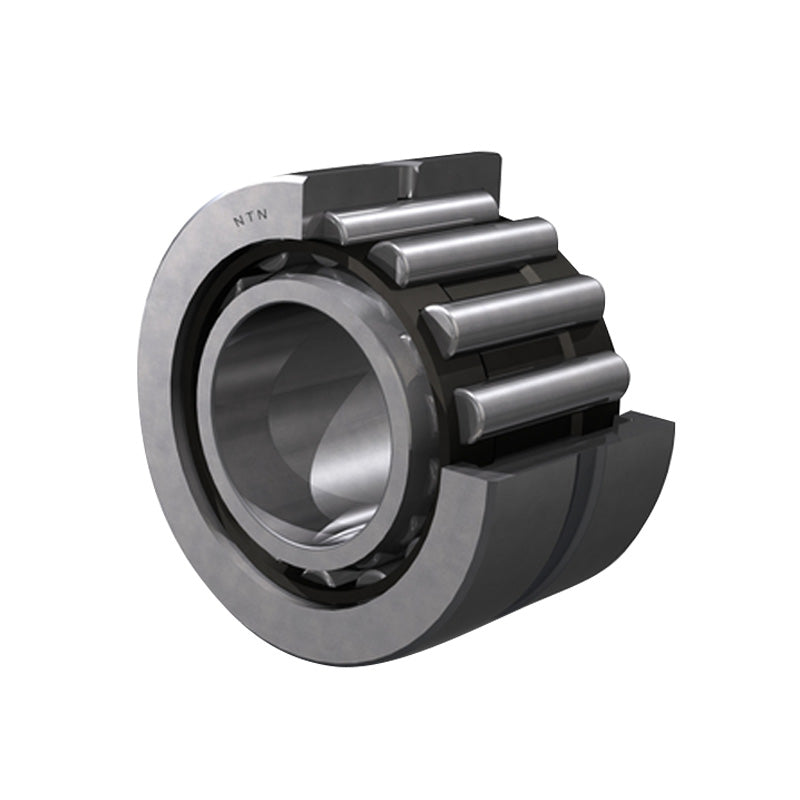

NTN NK105/26R-1R95X105X26 Machined Needle Roller Bearing with Shaft Sleeve 95x125x26mm - Allow 2-3 Days

NTN NK105/26R-1R95X105X26 Machined Needle Roller Bearing with Shaft Sleeve 95x125x26mm - Allow 2-3 Days
Regular price €155,47 ex VAT
Regular price Sale price €155,47 ex VAT
Sale Sold out

In stock

Price Break
3+ €131,71
4+ €126,39
9+ €123,73
19+ €119,74
49+ €117,08
99+ €110,42
499+ €93,13
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 95mm
D - Outside diameter 125mm
C - Width of bearing, drawn cup or outer ring 26mm
F - Under roller diameter 105mm
rs - Minimum fillet radius 1mm
s - Max axial offset 1.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Inner ring reference 1R95X105X26
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 76.5 kN
C0r - Static load rating 147 kN
N - Grease lubrication limit speed 2500 tr/min
N - Oil lubrication limit speed 3800 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 100mm
Da max - Outer ring maximum shoulder diameter 120mm
ras max - Maximum shaft & housing fillet radius 1mm
