SKU: NK16/20R-NTN

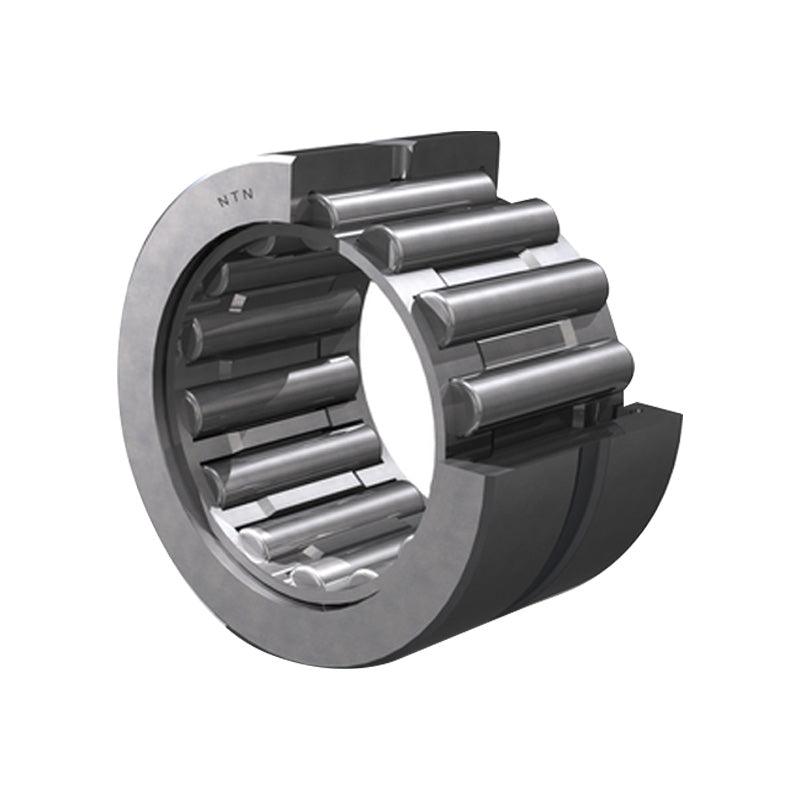

NTN NK16/20R Machined Needle Roller Bearing no Shaft Sleeve 16x24x20mm

NTN NK16/20R Machined Needle Roller Bearing no Shaft Sleeve 16x24x20mm
Regular price €12,64 ex VAT
Regular price Sale price €12,64 ex VAT
Sale Sold out

In stock

Price Break
3+ €9,63
4+ €9,09
9+ €8,98
19+ €8,87
49+ €8,76
99+ €8,66
499+ €8,12
999+ €8,01
1999+ €7,90
2999+ €7,79
4999+ €7,57
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 16mm
D - Outside diameter 24mm
C - Width of bearing, drawn cup or outer ring 20mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 14.6 kN
C0r - Static load rating 18.8 kN
N - Grease lubrication limit speed 15000 tr/min
N - Oil lubrication limit speed 23000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 22mm
ras max - Maximum shaft & housing fillet radius 0.3mm
