SKU: NK19/16-MB

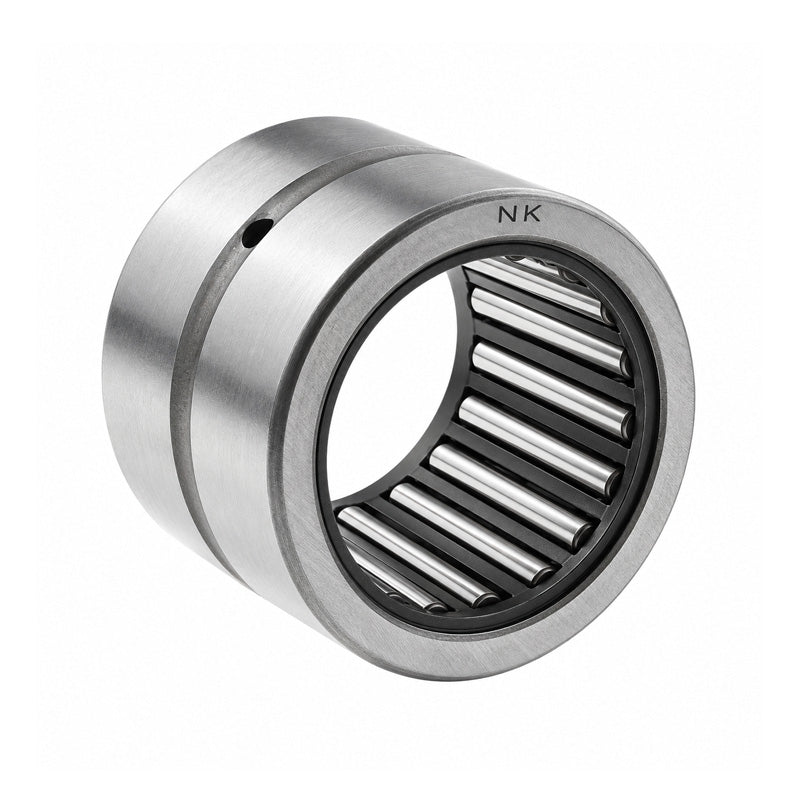

Major Brand NK19/16 Needle Roller Bearing With Flanges without Shaft Sleeve 19x27x16mm
Major Brand NK19/16 Needle Roller Bearing With Flanges without Shaft Sleeve 19x27x16mm
Regular price
€18,88
ex VAT
Regular price
Sale price
€18,88
ex VAT
In stock
Price Break
10+
€14,39
19+
€13,58
29+
€13,42
39+
€13,25
49+
€13,09
74+
€12,93
99+
€12,12
199+
€11,96
249+
€11,80
499+
€11,64
999+
€11,31
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 19mm
- Outside Diameter:
- 27mm
- Width:
- 16mm
Technical
Technical
| Fw | 19mm |
|---|---|
| D | 27mm |
| C | 16mm |
| Dynamic load | 13400 N |
| Static load | 19000 N |
| Fatigue load limit Pu | 2320 N |
| Speed in grease | 14000 rpm |
| Speed in oil | 20000 rpm |
| r1r2 | 0.3mm |
| Da max | 25mm |
| ra max | 0.3mm |
| Seal | G/SD19x27x4 |
| Weight | 26 g |
