SKU: NK19/16R+1R15X19X16-NTN

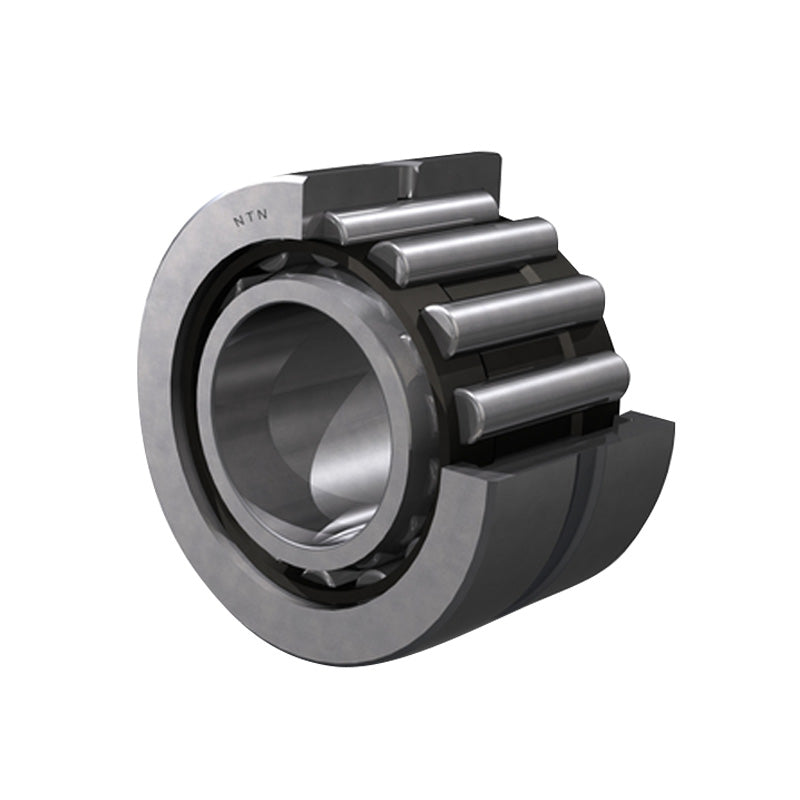

NTN NK19/16R-1R15X19X16 Machined Needle Roller Bearing with Shaft Sleeve 15x27x16mm - Allow 2-3 Days

NTN NK19/16R-1R15X19X16 Machined Needle Roller Bearing with Shaft Sleeve 15x27x16mm - Allow 2-3 Days
Regular price €15,50 ex VAT
Regular price Sale price €15,50 ex VAT
Sale Sold out

In stock

Price Break
3+ €13,13
4+ €12,60
9+ €12,33
19+ €11,93
49+ €11,67
99+ €11,01
499+ €9,28
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 15mm
D - Outside diameter 27mm
C - Width of bearing, drawn cup or outer ring 16mm
F - Under roller diameter 19mm
rs - Minimum fillet radius 0.3mm
s - Max axial offset 0.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Inner ring reference 1R15X19X16
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 13.3 kN
C0r - Static load rating 17.4 kN
N - Grease lubrication limit speed 14000 tr/min
N - Oil lubrication limit speed 21000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 17mm
Da max - Outer ring maximum shoulder diameter 25mm
ras max - Maximum shaft & housing fillet radius 0.3mm
