SKU: NK24/20R-NTN

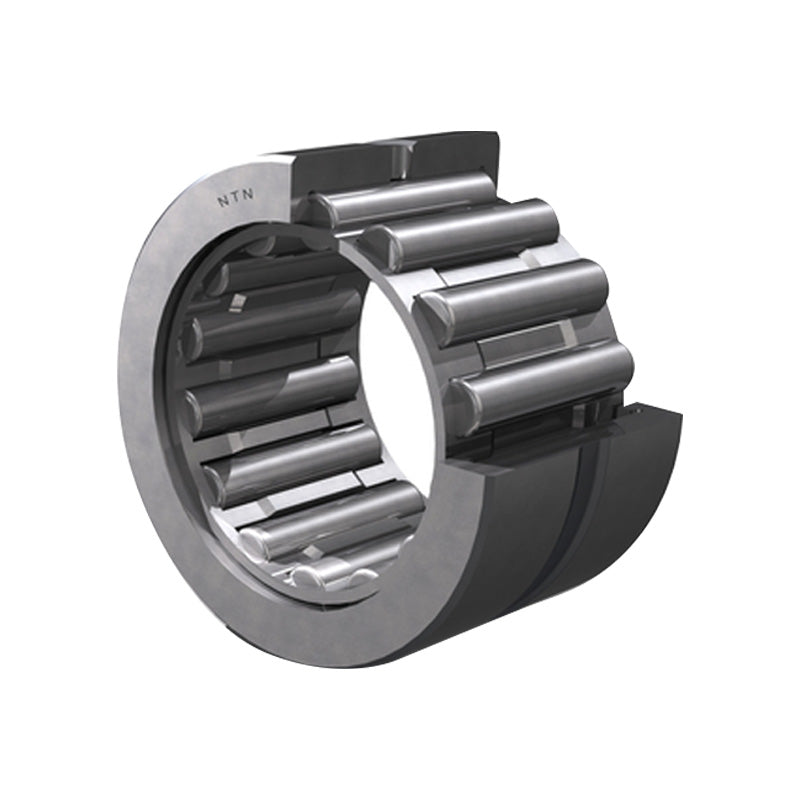

NTN NK24/20R Machined Needle Roller Bearing no Shaft Sleeve 24x32x20mm

NTN NK24/20R Machined Needle Roller Bearing no Shaft Sleeve 24x32x20mm
Regular price €15,14 ex VAT
Regular price Sale price €15,14 ex VAT
Sale Sold out

In stock

Price Break
3+ €11,53
4+ €10,89
9+ €10,76
19+ €10,63
49+ €10,50
99+ €10,37
499+ €9,72
999+ €9,59
1999+ €9,46
2999+ €9,33
4999+ €9,07
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 24mm
D - Outside diameter 32mm
C - Width of bearing, drawn cup or outer ring 20mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 18.6 kN
C0r - Static load rating 28.8 kN
N - Grease lubrication limit speed 11000 tr/min
N - Oil lubrication limit speed 17000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 30mm
ras max - Maximum shaft & housing fillet radius 0.3mm
