SKU: NK28/20-MB

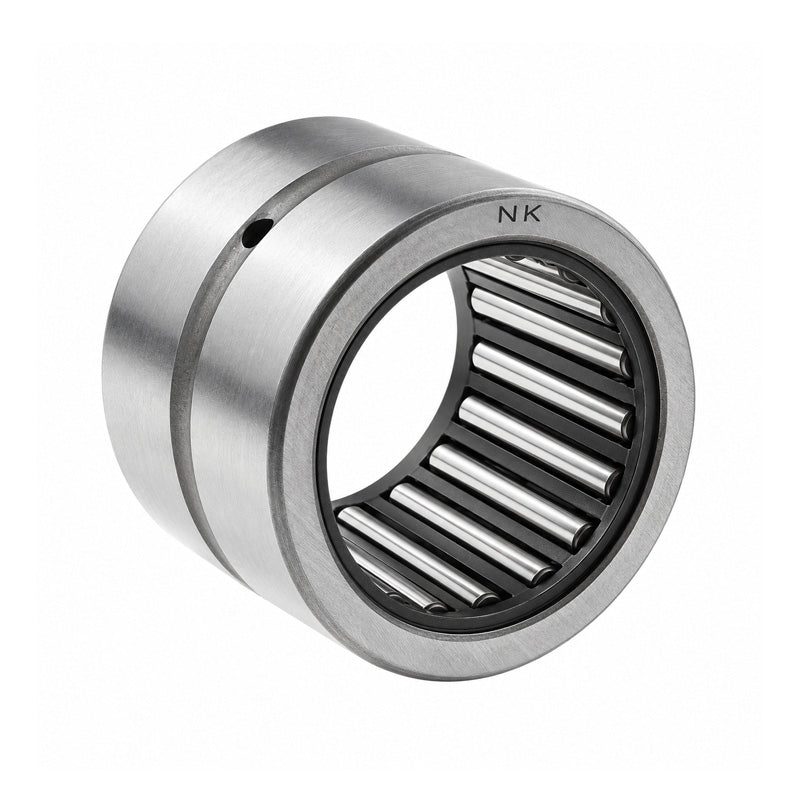

Major Brand NK28/20 Needle Roller Bearing With Flanges without Shaft Sleeve 28x37x20mm
Major Brand NK28/20 Needle Roller Bearing With Flanges without Shaft Sleeve 28x37x20mm
Regular price
€10,14
ex VAT
Regular price
Sale price
€10,14
ex VAT
In stock
Price Break
10+
€9,02
19+
€8,52
29+
€8,42
39+
€8,31
49+
€8,21
74+
€8,11
99+
€7,61
199+
€7,50
249+
€7,40
499+
€7,30
999+
€7,10
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 37mm
- Width:
- 20mm
Technical
Technical
| Fw | 28mm |
|---|---|
| D | 37mm |
| C | 20mm |
| Dynamic load | 22000 N |
| Static load | 36500 N |
| Fatigue load limit Pu | 4650 N |
| Speed in grease | 9000 rpm |
| Speed in oil | 14000 rpm |
| r1r2 | 0.3mm |
| Da max | 35mm |
| ra max | 0.3mm |
| Seal | G/SD28x37x4 |
| Weight | 52 g |
