SKU: NK28/30RCT-NTN

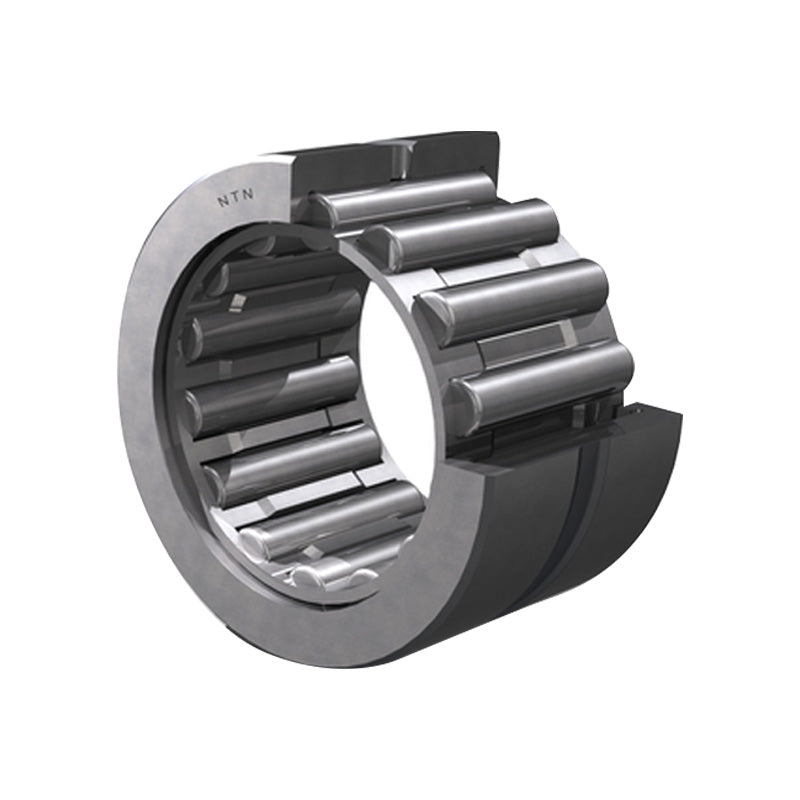

NTN NK28/30RCT Machined Needle Roller Bearing no Shaft Sleeve 28x37x30mm - Allow 2-3 Days

NTN NK28/30RCT Machined Needle Roller Bearing no Shaft Sleeve 28x37x30mm - Allow 2-3 Days
Regular price €15,52 ex VAT
Regular price Sale price €15,52 ex VAT
Sale Sold out

In stock

Price Break
3+ €13,15
4+ €12,62
9+ €12,35
19+ €11,95
49+ €11,69
99+ €11,02
499+ €9,30
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 28mm
D - Outside diameter 37mm
C - Width of bearing, drawn cup or outer ring 30mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 26.7 kN
C0r - Static load rating 48 kN
N - Grease lubrication limit speed 9500 tr/min
N - Oil lubrication limit speed 14000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 35mm
ras max - Maximum shaft & housing fillet radius 0.3mm
