SKU: NK32/30-MB

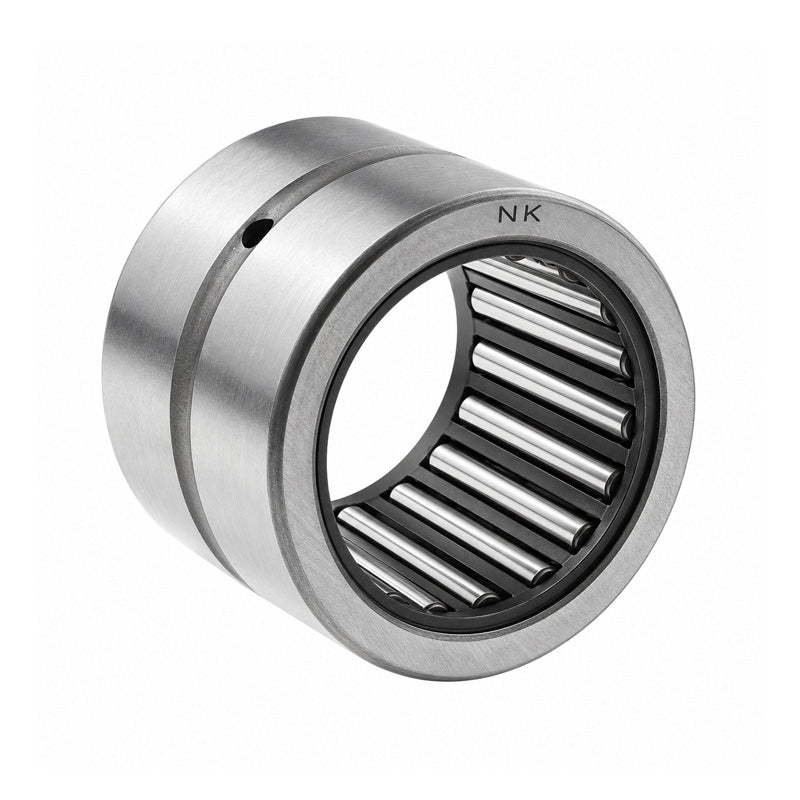

Major Brand NK32/30 Needle Roller Bearing With Flanges without Shaft Sleeve 32x42x30mm
Major Brand NK32/30 Needle Roller Bearing With Flanges without Shaft Sleeve 32x42x30mm
Regular price
€16,17
ex VAT
Regular price
Sale price
€16,17
ex VAT
In stock
Price Break
10+
€12,32
19+
€11,63
29+
€11,49
39+
€11,35
49+
€11,21
74+
€11,07
99+
€10,38
199+
€10,24
249+
€10,10
499+
€9,96
999+
€9,69
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 32mm
- Outside Diameter:
- 42mm
- Width:
- 30mm
Technical
Technical
| Fw | 32mm |
|---|---|
| D | 42mm |
| C | 30mm |
| Dynamic load | 34100 N |
| Static load | 65500 N |
| Fatigue load limit Pu | 8650 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| r1r2 | 0.3mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Seal | G/SD32x42x4 |
| Weight | 100 g |
