SKU: NK35/30TN-MB

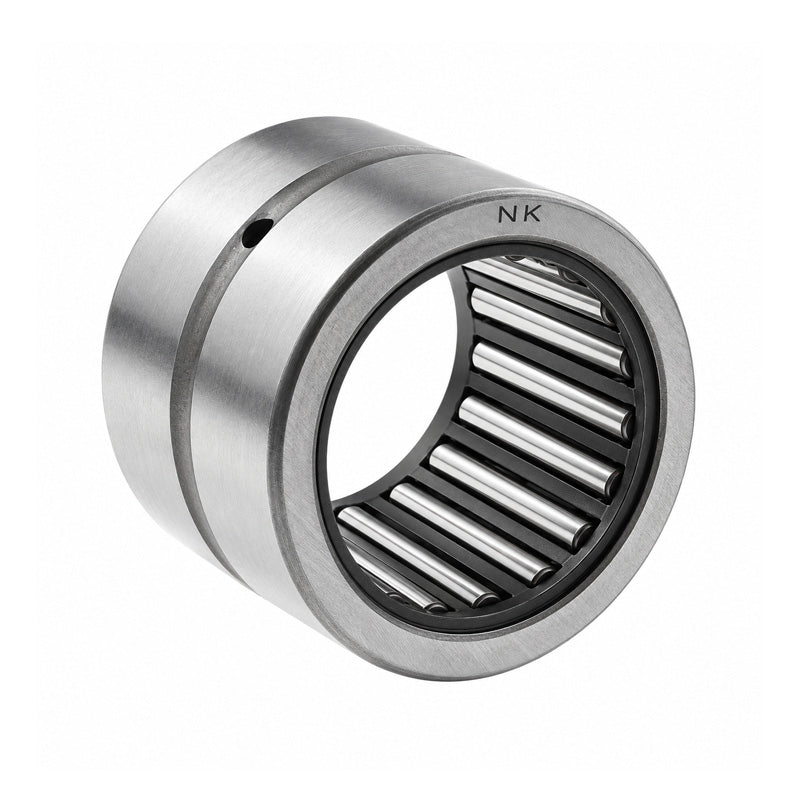

Major Brand NK35/30TN Needle Roller Bearing With Flanges without Shaft Sleeve 35x45x30mm
Major Brand NK35/30TN Needle Roller Bearing With Flanges without Shaft Sleeve 35x45x30mm
Regular price
€34,40
ex VAT
Regular price
Sale price
€34,40
ex VAT
In stock
Price Break
10+
€26,21
19+
€24,73
29+
€24,44
39+
€24,14
49+
€23,85
74+
€23,56
99+
€22,08
199+
€21,79
249+
€21,49
499+
€21,20
999+
€20,61
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 45mm
- Width:
- 30mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 45mm |
| C | 30mm |
| Dynamic load | 35800 N |
| Static load | 72000 N |
| Fatigue load limit Pu | 9500 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| r1r2 | 0.3mm |
| Da max | 43mm |
| ra max | 0.3mm |
| Seal | G/SD35x45x4 |
| Weight | 110 g |
