SKU: NK37/20-MB

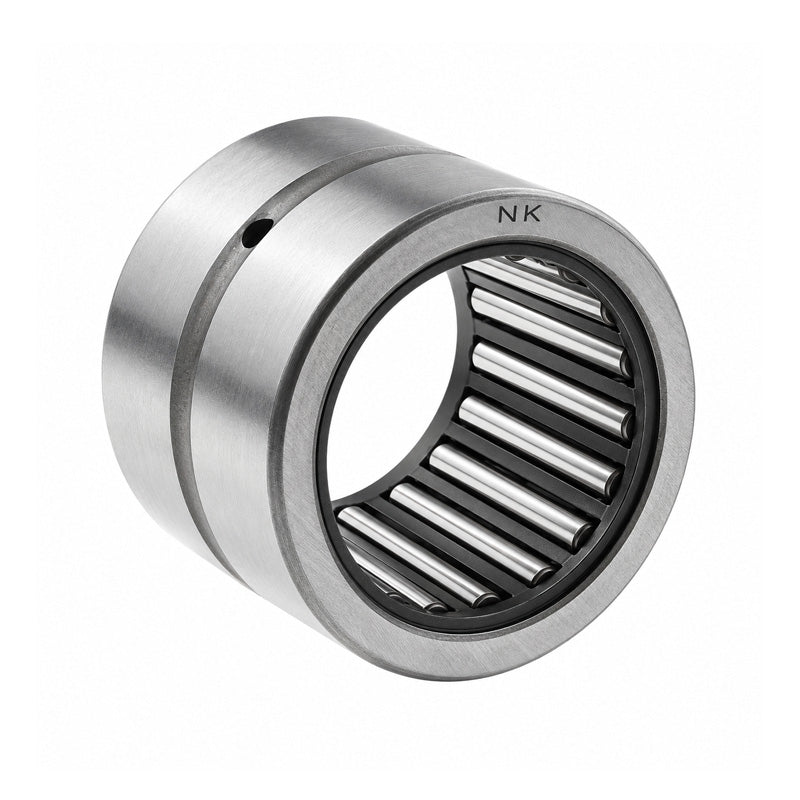

Major Brand NK37/20 Needle Roller Bearing With Flanges without Shaft Sleeve 37x47x20mm
Major Brand NK37/20 Needle Roller Bearing With Flanges without Shaft Sleeve 37x47x20mm
Regular price
€11,87
ex VAT
Regular price
Sale price
€11,87
ex VAT
In stock
Price Break
10+
€9,04
19+
€8,53
29+
€8,43
39+
€8,33
49+
€8,23
74+
€8,13
99+
€7,62
199+
€7,52
249+
€7,42
499+
€7,32
999+
€7,11
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 37mm
- Outside Diameter:
- 47mm
- Width:
- 20mm
Technical
Technical
| Fw | 37mm |
|---|---|
| D | 47mm |
| C | 20mm |
| Dynamic load | 25100 N |
| Static load | 46500 N |
| Fatigue load limit Pu | 5850 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| r1r2 | 0.3mm |
| Da max | 45mm |
| ra max | 0.3mm |
| Seal | G/SD37x47x4 |
| Weight | 77 g |
