SKU: NK38/30-MB

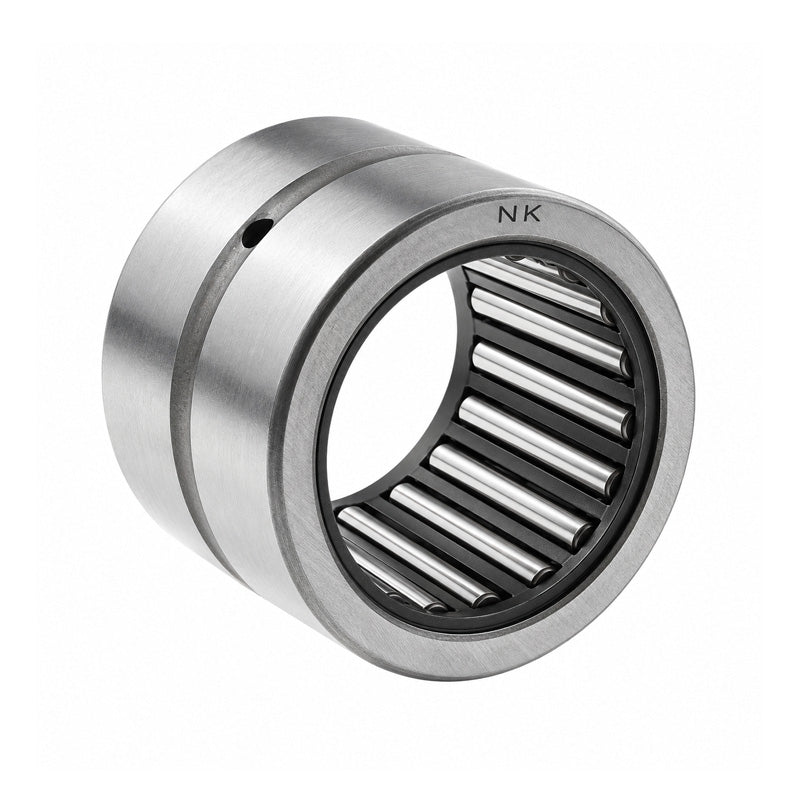

Major Brand NK38/30 Needle Roller Bearing With Flanges without Shaft Sleeve 38x48x30mm
Major Brand NK38/30 Needle Roller Bearing With Flanges without Shaft Sleeve 38x48x30mm
Regular price
€21,37
ex VAT
Regular price
Sale price
€21,37
ex VAT
In stock
Price Break
10+
€16,28
19+
€15,36
29+
€15,18
39+
€15,00
49+
€14,81
74+
€14,63
99+
€13,72
199+
€13,53
249+
€13,35
499+
€13,17
999+
€12,80
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 38mm
- Outside Diameter:
- 48mm
- Width:
- 30mm
Technical
Technical
| Fw | 38mm |
|---|---|
| D | 48mm |
| C | 30mm |
| Dynamic load | 37400 N |
| Static load | 80000 N |
| Fatigue load limit Pu | 10400 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| r1r2 | 0.3mm |
| Da max | 46mm |
| ra max | 0.3mm |
| Seal | G/SD38x48x4 |
| Weight | 120 g |
