SKU: NK47/20-MB

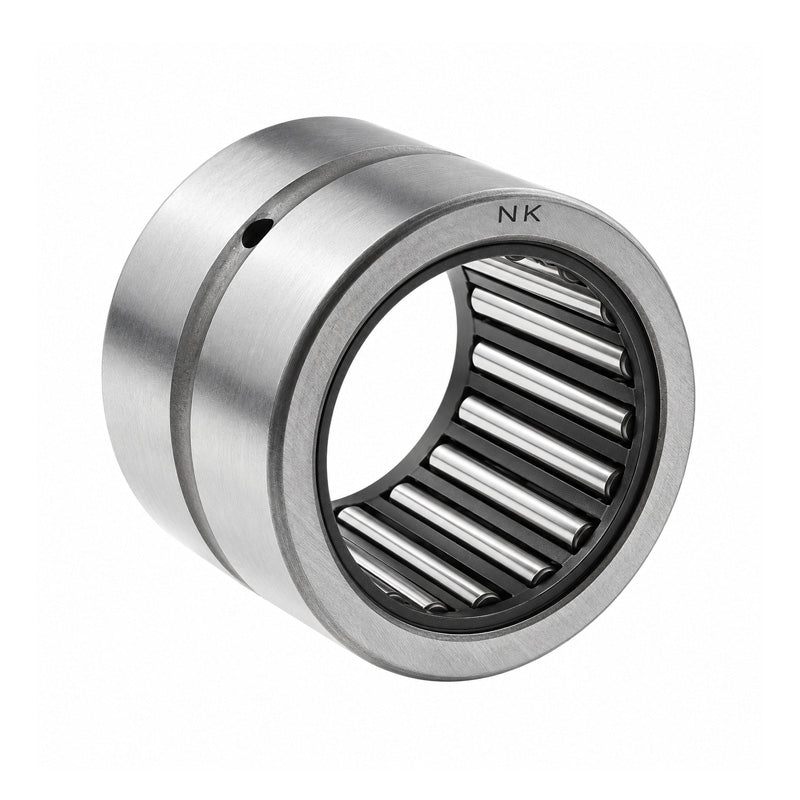

Major Brand NK47/20 Needle Roller Bearing With Flanges without Shaft Sleeve 47x57x20mm
Major Brand NK47/20 Needle Roller Bearing With Flanges without Shaft Sleeve 47x57x20mm
Regular price
€20,63
ex VAT
Regular price
Sale price
€20,63
ex VAT
In stock
Price Break
10+
€18,36
19+
€17,33
29+
€17,12
39+
€16,92
49+
€16,71
74+
€16,50
99+
€15,47
199+
€15,27
249+
€15,06
499+
€14,85
999+
€14,44
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 47mm
- Outside Diameter:
- 57mm
- Width:
- 20mm
Technical
Technical
| Fw | 47mm |
|---|---|
| D | 57mm |
| C | 20mm |
| Dynamic load | 29200 N |
| Static load | 61000 N |
| Fatigue load limit Pu | 7650 N |
| Speed in grease | 6000 rpm |
| Speed in oil | 8500 rpm |
| r1r2 | 0.3mm |
| Da max | 55mm |
| ra max | 0.3mm |
| Weight | 95 g |
