SKU: NK50/35TN-INA

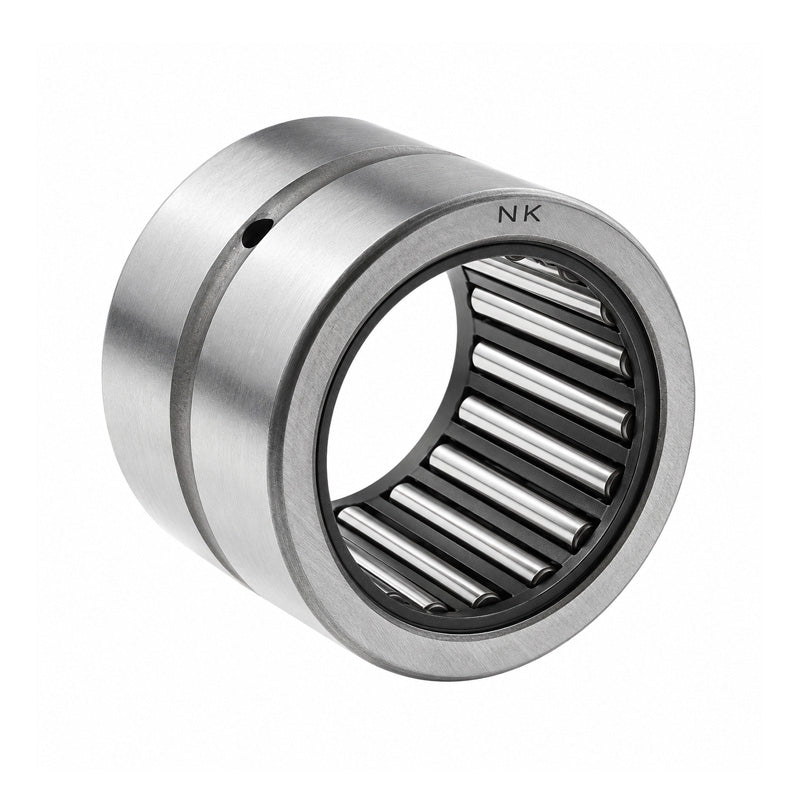

INA NK50/35TN Needle Roller Bearing With Flanges without Shaft Sleeve 50x62x35mm
INA NK50/35TN Needle Roller Bearing With Flanges without Shaft Sleeve 50x62x35mm
Regular price
€37,43
ex VAT
Regular price
Sale price
€37,43
ex VAT
In stock
Price Break
10+
€33,31
19+
€31,44
29+
€31,07
39+
€30,69
49+
€30,32
74+
€29,94
99+
€28,07
199+
€27,70
249+
€27,32
499+
€26,95
999+
€26,20
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 62mm
- Width:
- 35mm
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 62mm |
| C | 35mm |
| Dynamic load | 49500 N |
| Static load | 110000 N |
| Fatigue load limit Pu | 14300 N |
| Speed in grease | 5600 rpm |
| Speed in oil | 8000 rpm |
| r1r2 | 0.6mm |
| Da max | 58mm |
| ra max | 0.6mm |
| Seal | G/SD50x62x4 |
| Weight | 220 g |
