SKU: NK55/35R+1R50X55X35-NTN

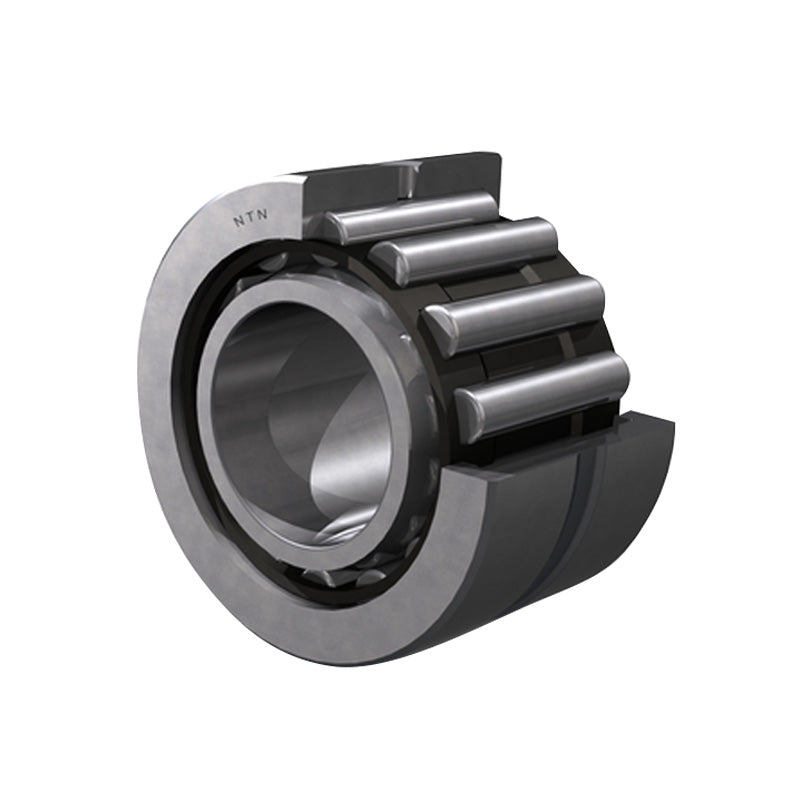

NTN NK55/35R-1R50X55X35 Machined Needle Roller Bearing with Shaft Sleeve 50x68x35mm - Allow 2-3 Days

NTN NK55/35R-1R50X55X35 Machined Needle Roller Bearing with Shaft Sleeve 50x68x35mm - Allow 2-3 Days
Regular price €46,62 ex VAT
Regular price Sale price €46,62 ex VAT
Sale Sold out

In stock

Price Break
3+ €39,49
4+ €37,90
9+ €37,10
19+ €35,90
49+ €35,10
99+ €33,11
499+ €27,92
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 50mm
D - Outside diameter 68mm
C - Width of bearing, drawn cup or outer ring 35mm
F - Under roller diameter 55mm
rs - Minimum fillet radius 0.6mm
s - Max axial offset 2mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Inner ring reference 1R50X55X35
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 54 kN
C0r - Static load rating 118 kN
N - Grease lubrication limit speed 5000 tr/min
N - Oil lubrication limit speed 7500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 53mm
Da max - Outer ring maximum shoulder diameter 64mm
ras max - Maximum shaft & housing fillet radius 0.6mm
