SKU: NK6/10TN-MB

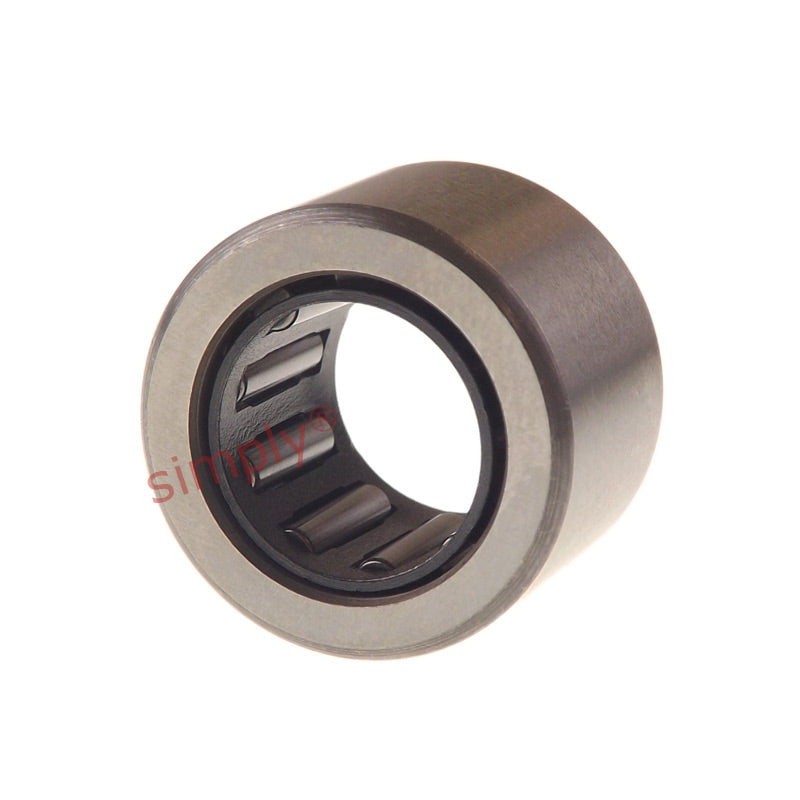

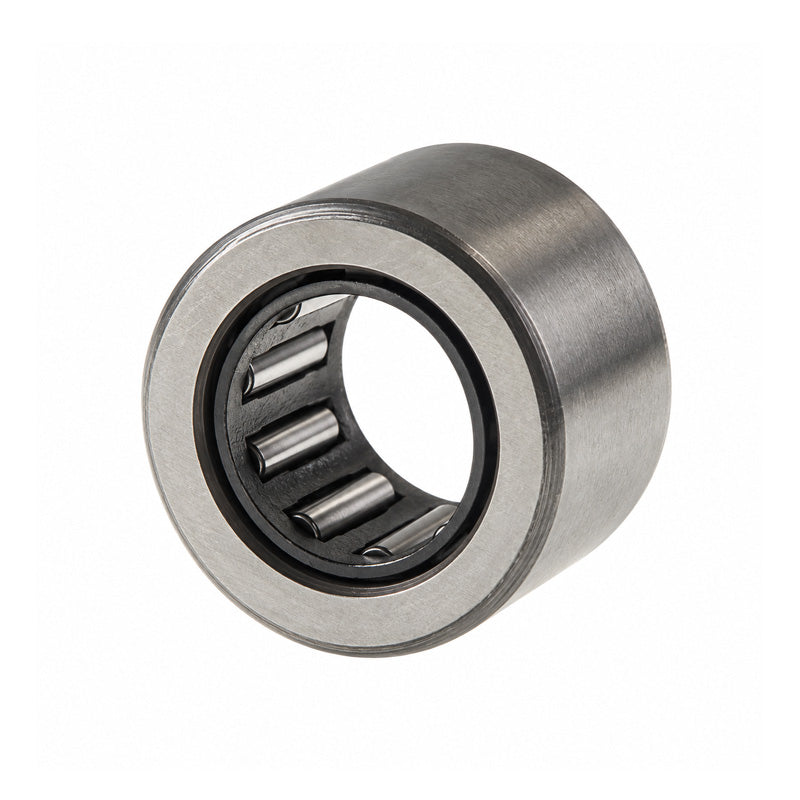

Major Brand NK6/10TN Needle Roller Bearing With Flanges without Shaft Sleeve 6x12x10mm
Major Brand NK6/10TN Needle Roller Bearing With Flanges without Shaft Sleeve 6x12x10mm
Regular price
€9,84
ex VAT
Regular price
Sale price
€9,84
ex VAT
In stock
Price Break
10+
€7,49
19+
€7,07
29+
€6,99
39+
€6,90
49+
€6,82
74+
€6,73
99+
€6,31
199+
€6,23
249+
€6,15
499+
€6,06
999+
€5,89
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 12mm
- Width:
- 10mm
Technical
Technical
| Fw | 6mm |
|---|---|
| D | 12mm |
| C | 10mm |
| Dynamic load | 2550 N |
| Static load | 2360 N |
| Fatigue load limit Pu | 250 N |
| Speed in grease | 32000 rpm |
| Speed in oil | 45000 rpm |
| r1r2 | 0.15mm |
| Da max | 10.8mm |
| ra max | 0.1mm |
| Seal | G6x12x2 |
| Weight | 4.7 g |
